Super fast planetary conrete mixer machine for paver block machine
Super fast planetary conrete mixer machine for paver block machine

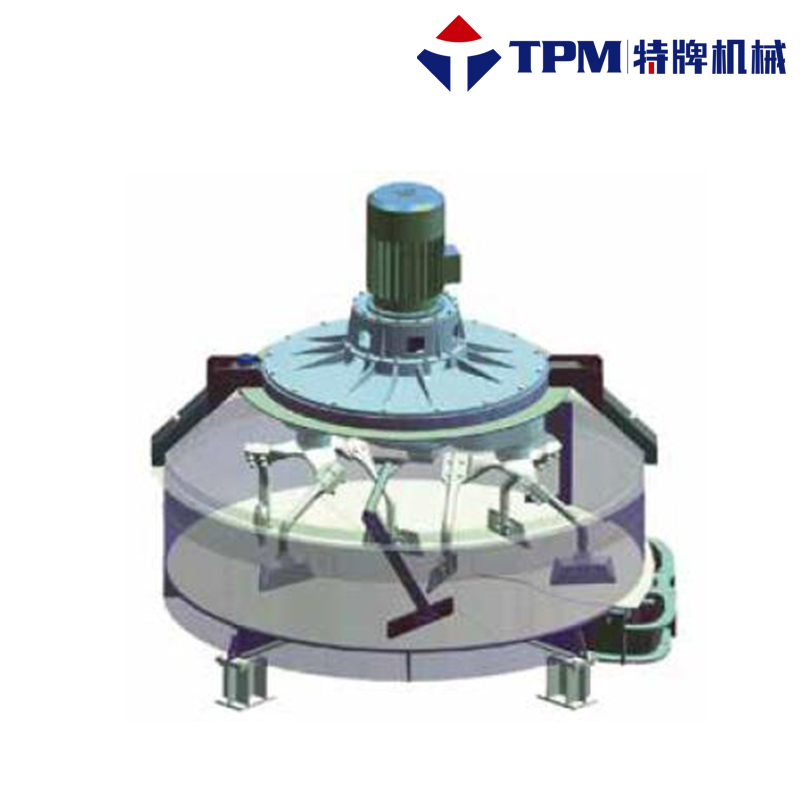

TPM planetary mixer machines are used for the mixing of raw materials applied in concrete products such interlocking pavers, hollow blocks, solid blocksk, solid bricks, kerbstones etc.
Input capacity :
1500LOutput capacity :
1000LProductivity :
20m3/hMixing motor power :
37KWHydraulic pump motor :
3KWMax. weight of cement :
500LMax. weight of water :
200LMachine dimension :
2890×2602×2220mm(L×W×H)| MP330 | MP500 | MP750 | MP1000 | MP1500 | ||
| Output Materials(L) | 330L | 500L | 750L | 1000L | 1500L | |
| Input Materials(L) | 500L | 750L | 1125L | 1500L | 2250L | |
| Productivity(m3/h) | 6.6m3/h | 10m3/h | 15m3/h | 20m3/h | 30m3/h | |
| Gross Weight(kg) | 1700kg | 2400kg | 3900kg | 6300kg | 7700kg | |
| Dimension(mm) | Length | 1871mm | 2224mm | 2581mm | 2890mm | 3223mm |
| Width | 1862mm | 2071mm | 2336mm | 2602mm | 2902mm | |
| Height | 1855mm | 1910mm | 2195mm | 2220mm | 2425mm | |
| Mixing motor power(KW) | 15KW | 18.5KW | 30KW | 37KW | 55KW | |
| Hydraulic pump motor(KW) | 3KW | 3KW | 3KW | 3KW | 3KW | |
TPM planetary concrete mixer machine is of high mixing efficiency, low maintenance cost, strong durability. It is designed to meet the high quality concrete demands of clients involved in paving block industry.
