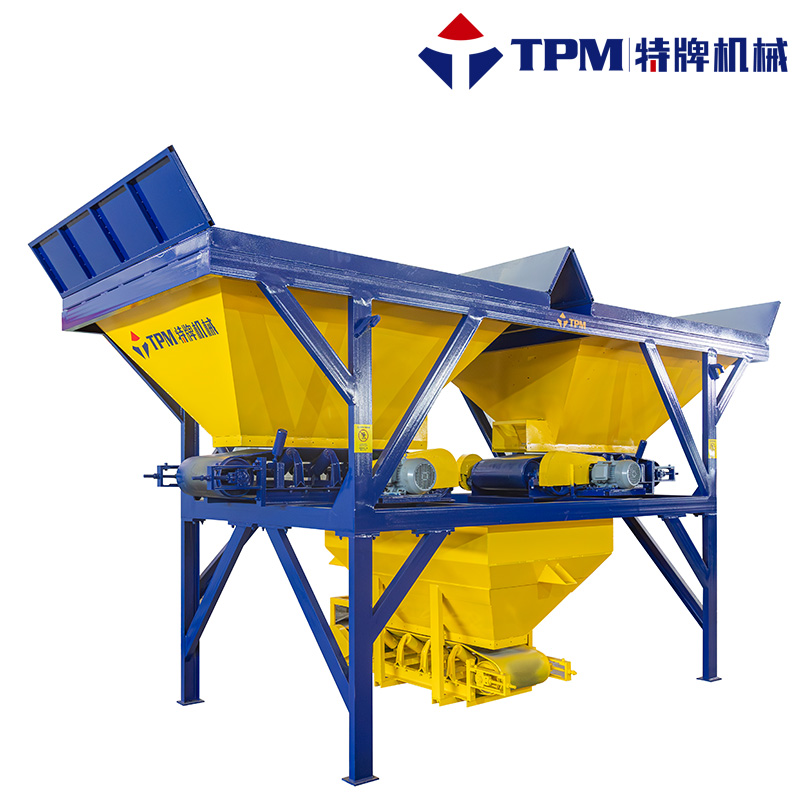

High Accuracy and High Efficiency Concrete Aggregate Batching Machine TPL800
High Accuracy and High Efficiency Concrete Aggregate Batching Machine TPL800
The TPL series aggregate batching machine is fully automatic, featuring electronic cumulative measurement, PLC centralized control, and digital display. They offer high precision measurement, fast mixing speed, easy operation, and increased reliability. The aggregate batcher eeding equipment is compatible with various machines, including loaders, belt conveyors, grab buckets, and horizontal pushers.
TPL800 Aggregate Batching Machine Description:
| Model | TPL800 |
| Weighing hopper capacity | 0.8 m3 |
| Reserve hopper capacity | 2×2L |
| Production capacity | 48m3/h |
| Batching precision(%) | ±2 |
| Max. weighing | 1500kg |
| Aggregate types | 2 |
| Loading height | 2660mm |
| Power | 7.6KW |
| Dimension(L×W×H) | 5650×2040×2990mm |
