Economic paving brick/concrete block making machine(TPM4000)

Home

Chinese Design Concrete Block Machine

Economic paving brick/concrete block making machine(TPM4000)

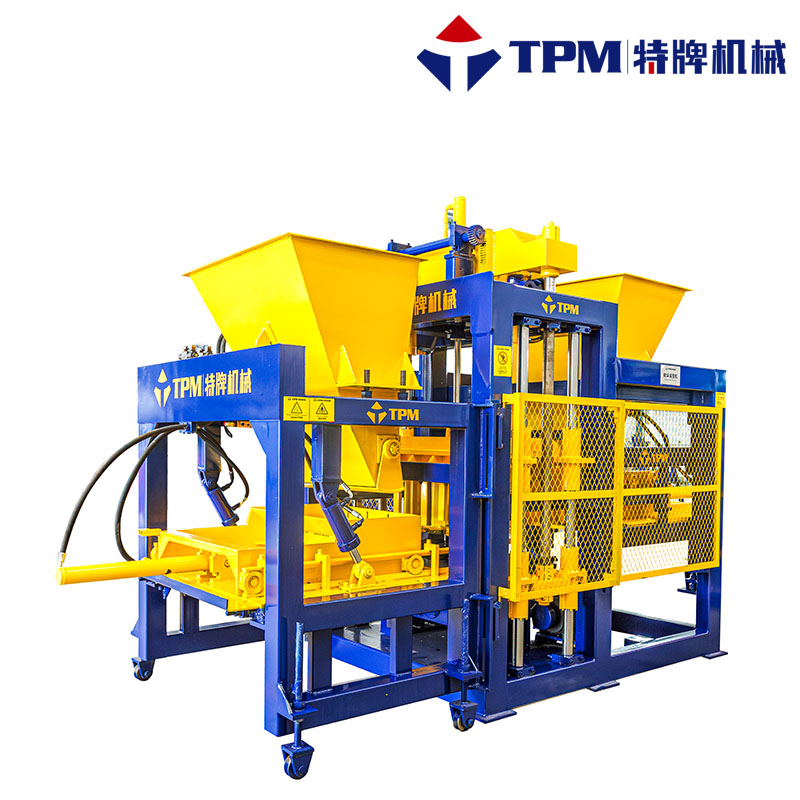

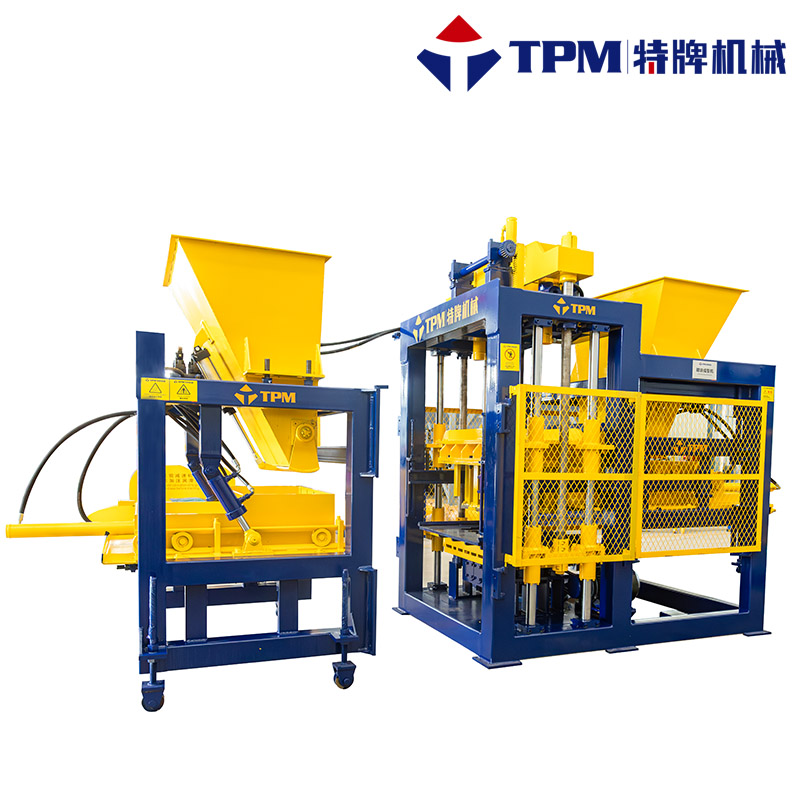

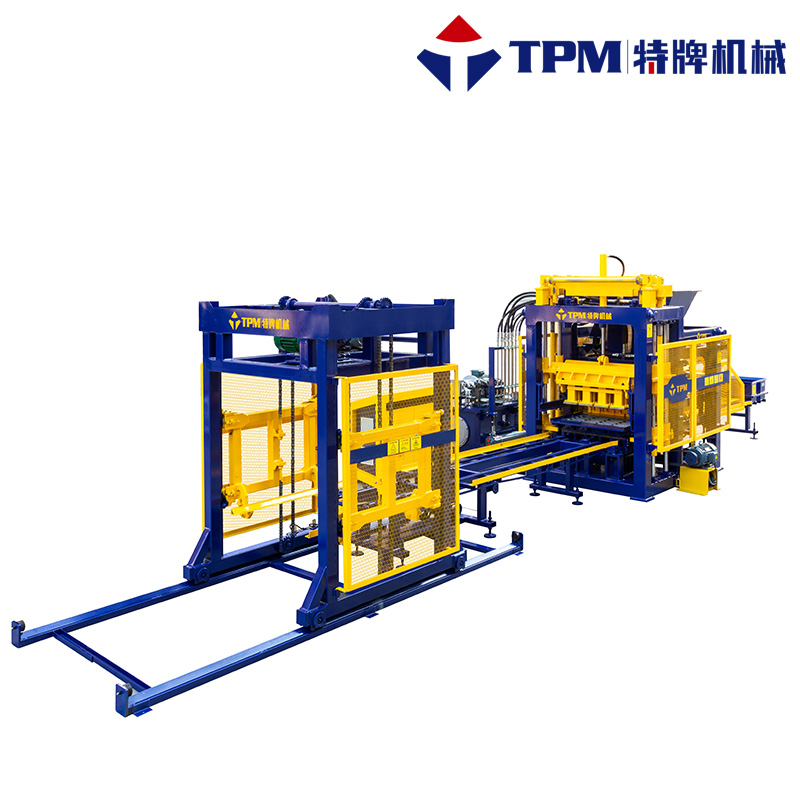

TPM4000 model is small and economic brick making machine, very suitable for first time investment into this field.

Pallet size: :
880×560mm
Forming area: :
830×520mm
Vibration force: :
50~70KN
Production height: :
50~200mm
Control system: :
Germany SIEMENS PLC
Power consumption: :
32KW
Machine weight: :
7.8T(With face hopper)

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Cement brick/concrete block machine TPM4000 video:

TPM4000 automatic brick block machine technical features:

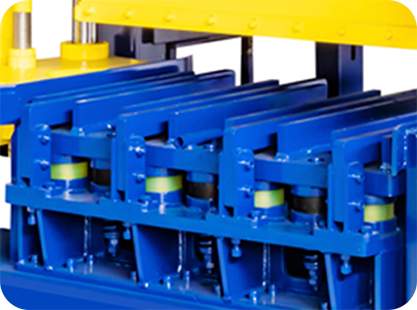

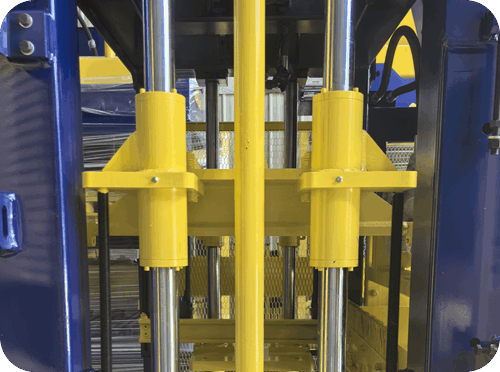

Heavy duty frame
The machine features a robust construction using 150× 150mm square tubes for main columns and 60mm solid guiding columns. Built from high-quality materials, this machine offers unparalleled durability, ensuring its reliability over extended periods of use.

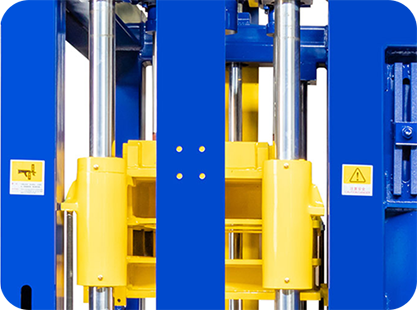

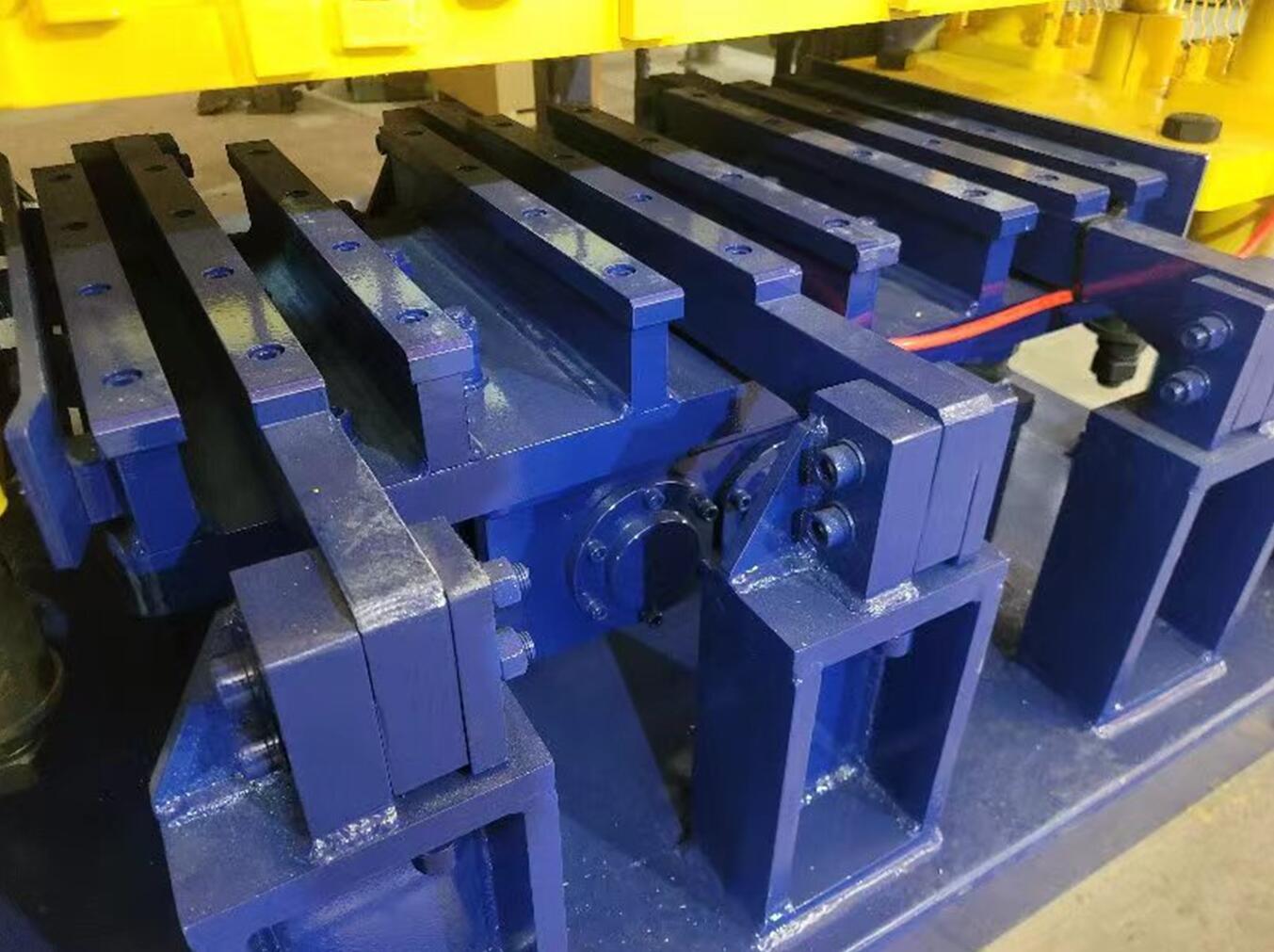

Static & dynamic table design
Can control vibration amplitudes, ensure higher energy transfer efficiency.

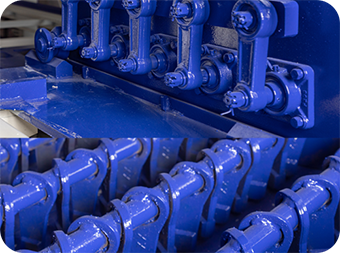

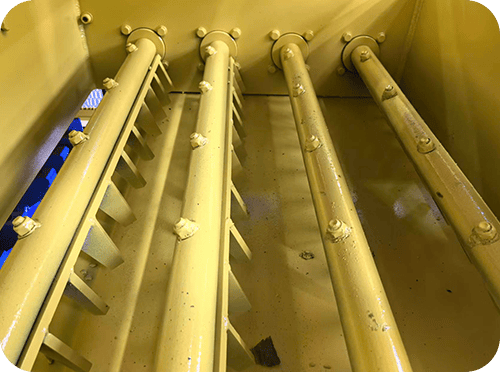

Efficient Material Feeding Car
A high density rake teeth are adopted, thus concrete feeding is fast and uniform. The feeding car bottom plate is made of high strength wear-resistant steel, and the front end of feeding car adopts carburization and heat treatment.

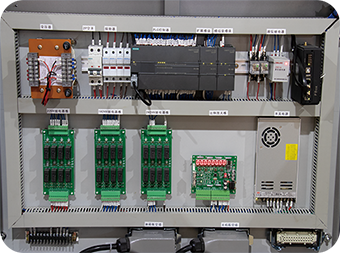

SIEMENS PLC control system

1) Controlled by Germany Siemens PLC with data input and output function. The system has safety logic control and system fault self-diagnosis. It also has a self-locking function to avoid mechanical accidents caused by misoperation;

2) Electrical components adopt International brand Scheinder, which of high performance and locally available for spare parts.

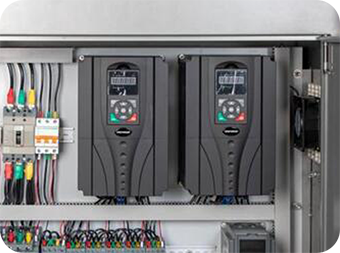

Dual frequency invertors
The dual frequency invertors each controls one vibration motor, which can ensure frequency synchronization, detect motor problem timely, aiming to minimize the breakdown rate.

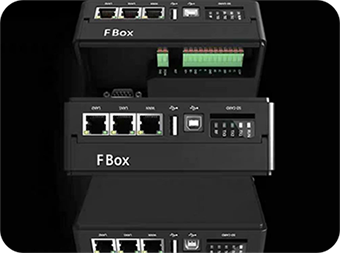

Online troubleshooting system
The online function of real-time monitoring and troubleshooting enables swift resolution of circuit faults and most electrical issues without delay.

TPM4000 Concrete Block Machine Technical Parameters
Pallet size: 880×560mm	Vibration motor: 2×5.5KW Germany SIEMENS motor
Forming area: 830×520mm	Static & dynamic
Control system: German SIEMENS PLC	Feeding car design: Hydraulic driven
Products height: 50~200mm	Hydraulic system: 15KW
Products strength: 7.5~60Mpa	Hydraulic system: 15KW
Cycle time: 12~20s	Power consumption: 32KW
Machine weight: 7.8 Ton(With face hopper)	Vibration force: 50~70KN
Machine weight: 7.8 Ton(With face hopper)	Vibration frequency: 50~60Hz

TPM4000 cement block machine production capacity in 8 hrs:
Size	Photos	Quantity Per Pallet	Max. Output In 8 Hours
400×200×200mm Hollow Blocks		4 pcs	6,000 pcs
220×72×105mm Solid Bricks		20 pcs	30,000 pcs
230×110×75mm Solid Bricks		12 pcs	21,600 pcs
200×100×60/80mm Holland Pavers		14 pcs	21,000 pcs (420 sq. mtrs)
225×112.5×60/80mm Zigzag Pavers		12 pcs	18,000 pcs (455 sq. mtrs)

Note: Above production capacity is approximate indications and depends on block making machine settings, mix design, type of aggregates, operator's experience, numbers of pallets(need to prepare enough pallets), etc...

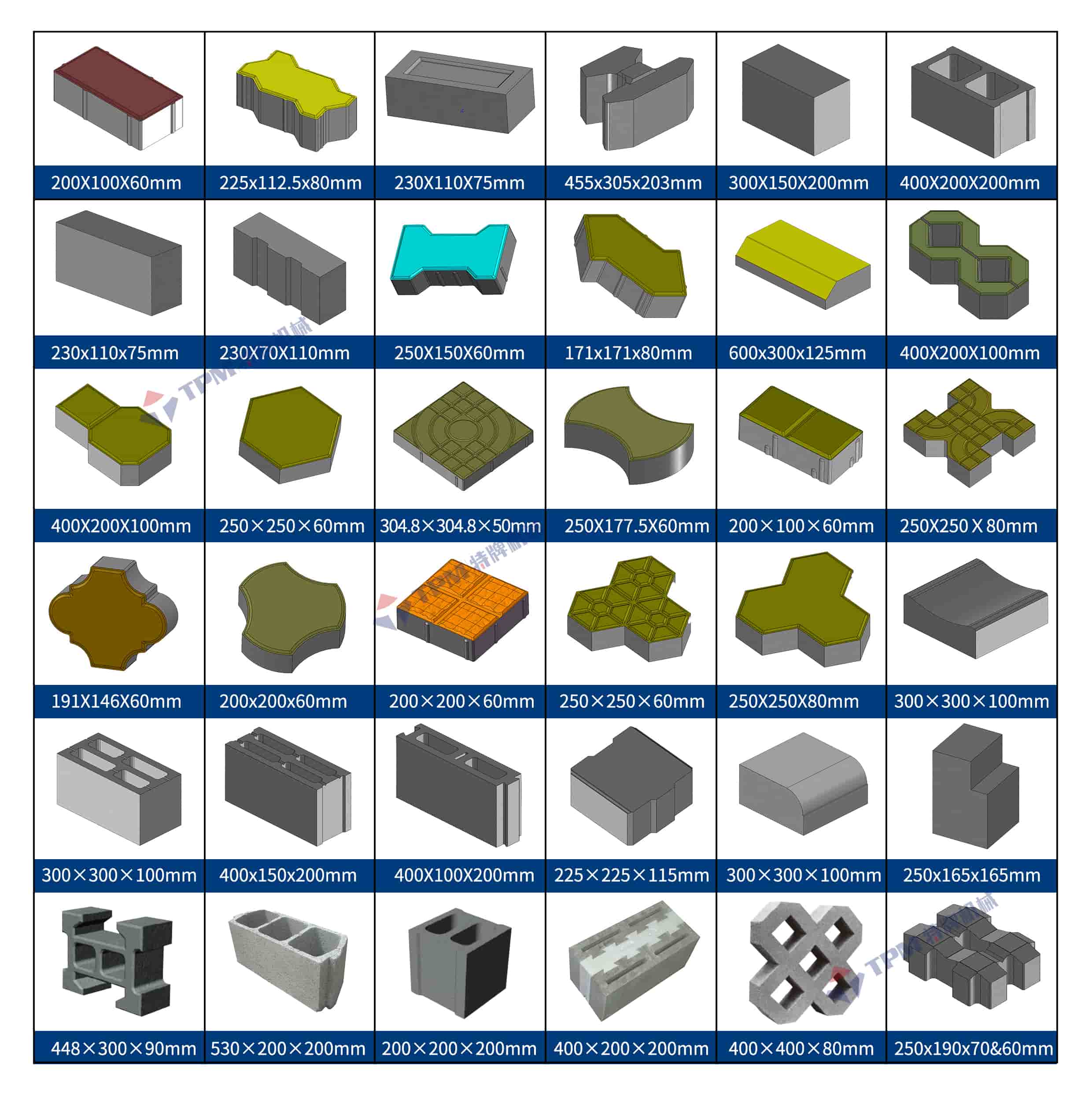

Finished Products Manufactured By Concrete Block Machine TPM4000, Hollow Blocks/Solid Blocks/Solid Bricks/Kerbstone/Interlocking Pavers/Flyash Bricks Making Machine
