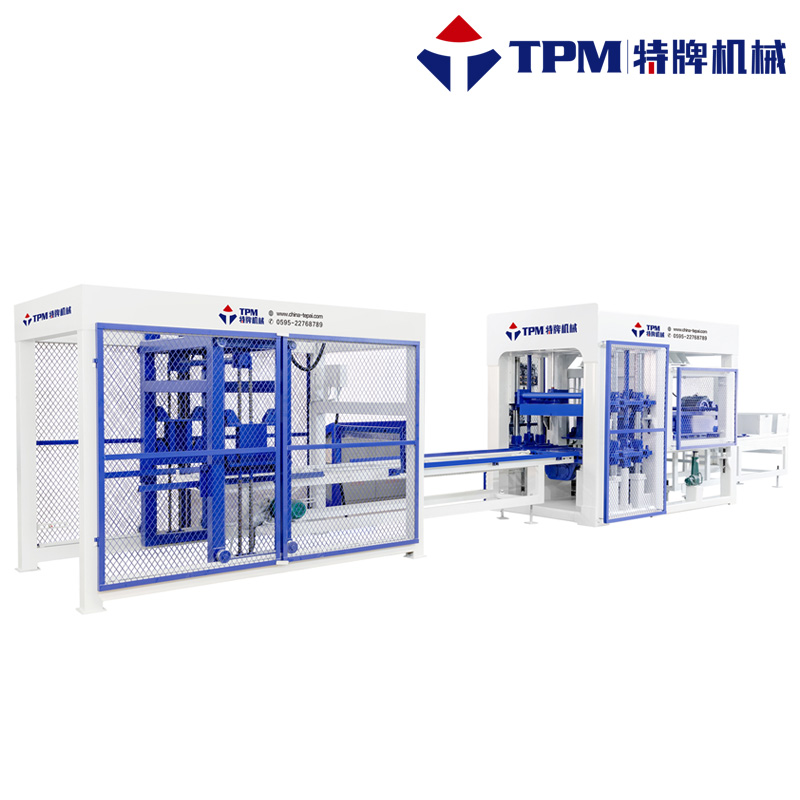

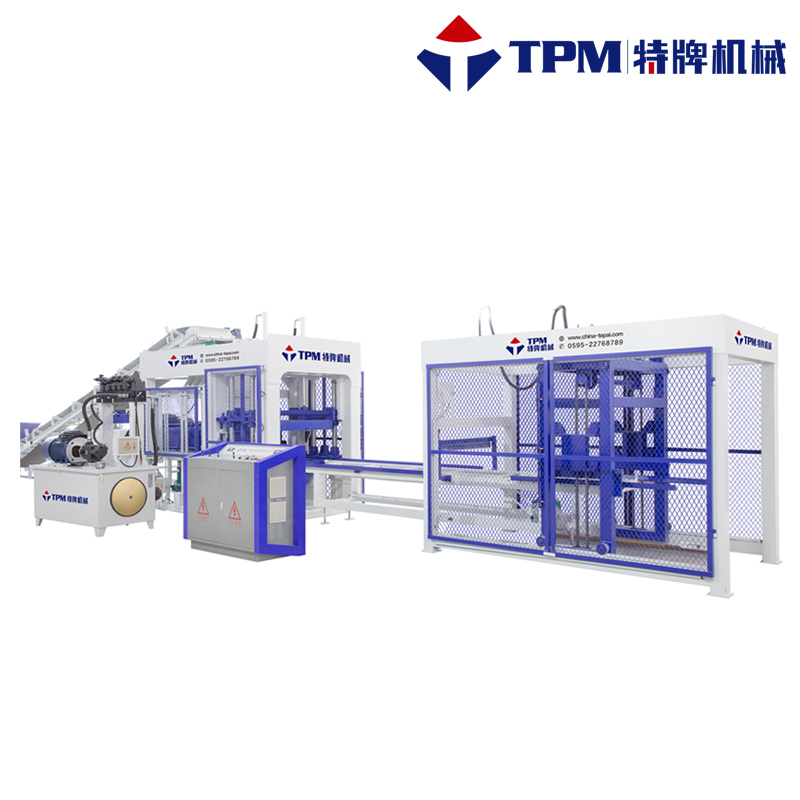

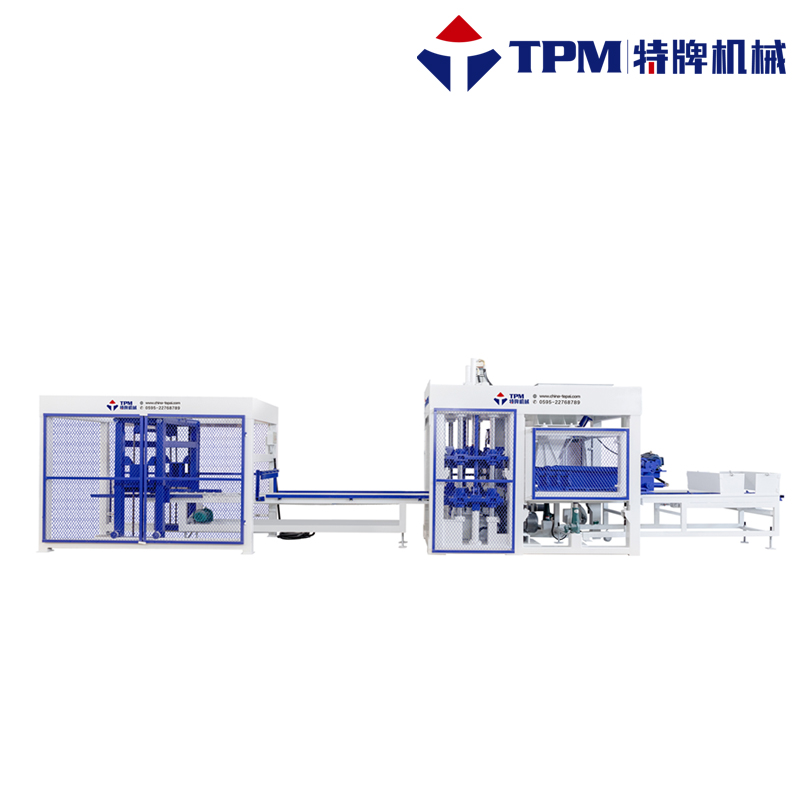

High Pressure Automatic Hydraulic Cement Block/Solid Brick Machine(TPM8000)

Home

Chinese Design Concrete Block Machine

High Pressure Automatic Hydraulic Cement Block/Solid Brick Machine(TPM8000)

Stronger machine, faster speed, higher production. TPM8000 is an extremely mature, stable and cost-effective concrete block making machine. The vibration is controlled by double frequency inverters and the force can be adjusted to ensure the quality of concrete products.

Pallet size: :
880×880mm
Forming area: :
830×830mm
Vibration force: :
80~100KN
Production height: :
50~200mm
Control system: :
German SIEMENS PLC
Power consumption: :
49.1KW
Machine weight: :
10.5Ton (With face hopper)

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

TPM8000 cement block brick machine videos:

TPM8000 Hydraulic Press Block Machine Technical Features:

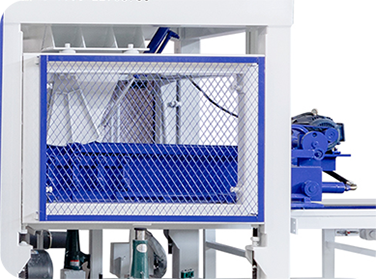

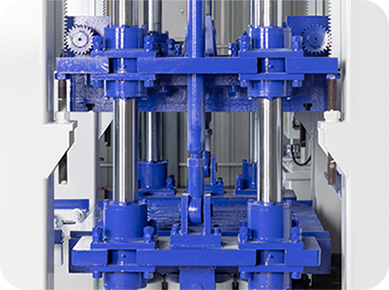

Heavy Duty Frame
The machine features a robust construction using 200×200×10mm thick square tubes for main columns and four φ80mm solid guiding rods, ensuring stability and durability.

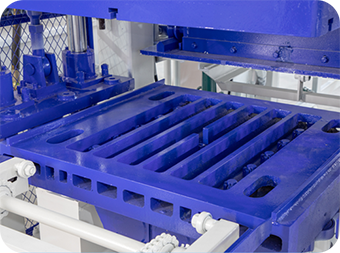

Efficient material feeding car
Use high-density rake teeth, the concrete are distributed quickly and evenly. Feeding car bottom plate is made of high-strength and wear-resistant steels, and the front end of feeding car is processed with heat treatment and carburization.
Integrated casted vibration table
The vibration table adopts integrated casting part to ensure balance and durability. The vibration box uses prece casting to ensure accuracy. The bearings are imported from Japan NSK to ensure durability.

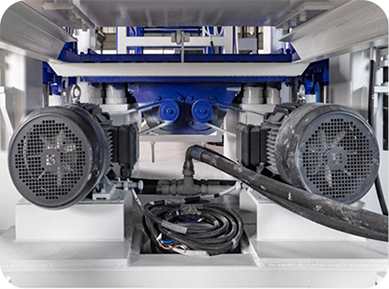

SIEMENS Vibration motors
1) The vibration table for acceptance of two vibrators to achieve a maximum centrifugal force of 100KN;
2) Adopt two 11KW SIEMENS vibration motors, frequency can be adjusted to get different vibration force for higher strength paver blocks using less cement;
3) Short start and stop times of vibration due to small mass acceleration.

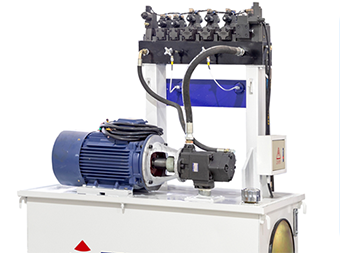

Advanced Italian hydraulic system
1）Adopt high dynamic double proportional guide valve, so that each action can automatically adjust the pressure and flow of system according to different load and speed requirements, to achieve fast movement without impact and save energy also；
2) Adopt 22KW SIEMENS hydraulic motor and LEAD-FLEX hydraulic oil pipes to ensure powerful mechanical movement.
Automatic feeding car lifting system
Can automatically go up & down via hydraulic cylinder or motor, greatly reduce save mold change time.

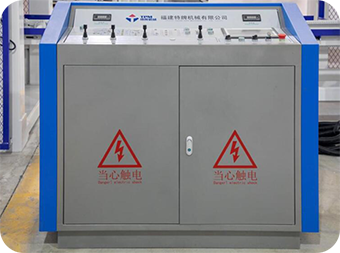

SIEMENS PLC Control System
1) Controlled by Germany Siemens PLC with data input and output function. The system has safety logic control and system fault self-diagnosis. It also has a self-locking function to avoid mechanical accidents caused by misoperation;

2) Electrical components adopt International brand Scheinder, which of high performance and locally available for spare parts.

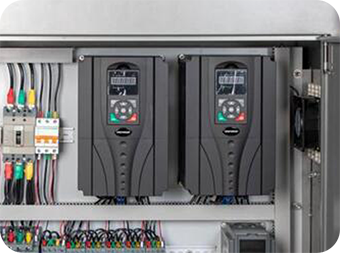

Vibration system controlled by two invertors
The dual frequency converters each control a variable frequency motor, which can ensure frequency synchronization, detect problems in the motor or circuit in a timely manner, easy for maintenance.

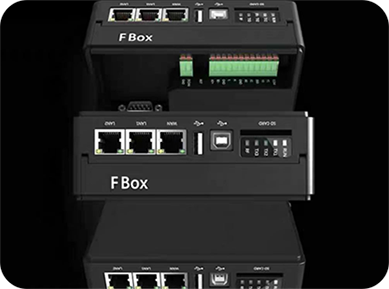

Online trouble shooting system
The online function of real-time monitoring and troubleshooting enables swift resolution of circuit faults and most electrical issues without delay.

TPM8000 Concrete Block Machine Technical Parameters
Pallet size: 880×880mm	Vibration motor: 2×11KW Germany SIEMENS motor
Forming area: 830×830mm	Casted steel vibration table
Control system: German SIEMENS PLC	Feeding car design: Hydraulic driven
Products height: 50~200mm	Hydraulic system: 22KW
Products strength: 7.5~60Mpa	Hydraulic system: 22KW
Cycle time: 12~20s	Power consumption: 49.1KW
Machine weight: 10.5Ton(With face hopper)	Vibration force: 80~100KN
Machine weight: 10.5Ton(With face hopper)	Vibration frequency: 50~60Hz

TPM8000 cement block machine production capacity in 8 hrs:
Size	Photos	Quantity Per Pallet	Max. output in 8 hours
400×200×200mm hollow blocks		8 pcs	12,000 pcs
230×75×110mm solid bricks(Stand)		27 pcs	48,600 pcs
228.6×114.3×76.2 solid bricks(Flat)		18 pcs	32,400 pcs
200×100×60/80mm holland pavers		28 pcs	42,000 pcs
225×112.5×60/80mm zigzag pavers		18 pcs	27,000 pcs

Note: Above production capacity is approximate indications and depends on block making machine settings, mix design, type of aggregates, operator's experience, numbers of pallets(need to prepare enough pallets), etc...

Hot Tags : High Pressure Cement Block Machine automatic concrete block machine Concrete Block Manufacturing Machine Cement block making machine block production machine paver block manufacturing machine

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

Fully automatic cement brick/fly ash brick making machine for sale(TPM6000)

TPM6000 automatic cement brick machine can produce 1800 pcs fly ash bricks per hour. It's SIEMENS PLC controlled, use 2×9KW permanet magnet vibration motors.

German Technology TPM5000 automatic concrete cement brick making machine

TPM5000 is a fully automatic paver block and fly ash bricks making machine. It features a Siemens PLC control system, robust 150x150x8mm square tube frame, high compaction with static & dynamic table, 2x11KW electric vibration motors, and an online troubleshooting system for quick after-sales service. This machine is designed for efficiency and durability in construction projects.

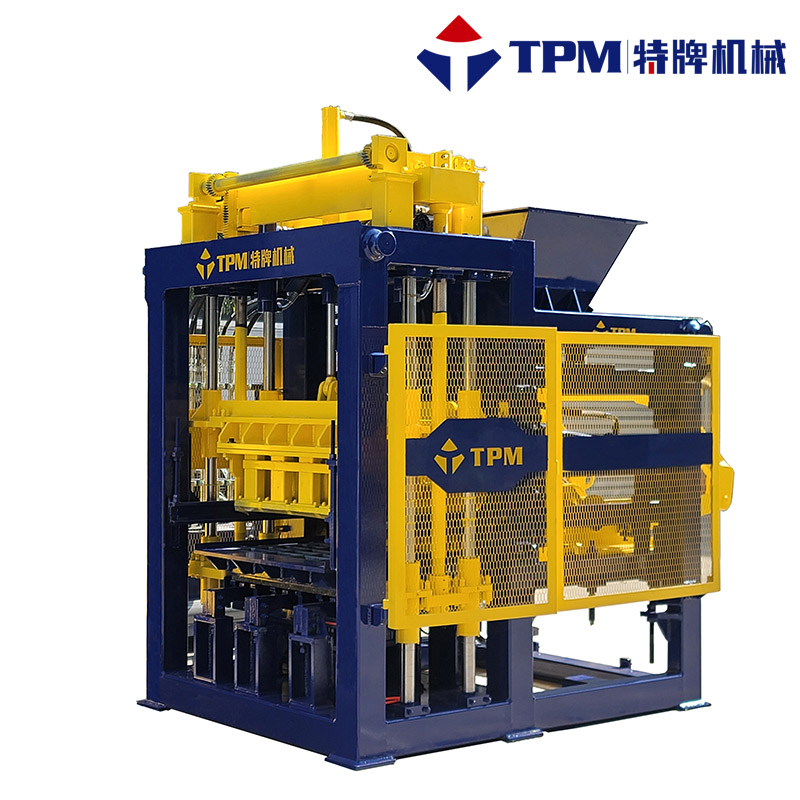

TPM4000 Economic Paver and Solid Concrete Block Making Machine
