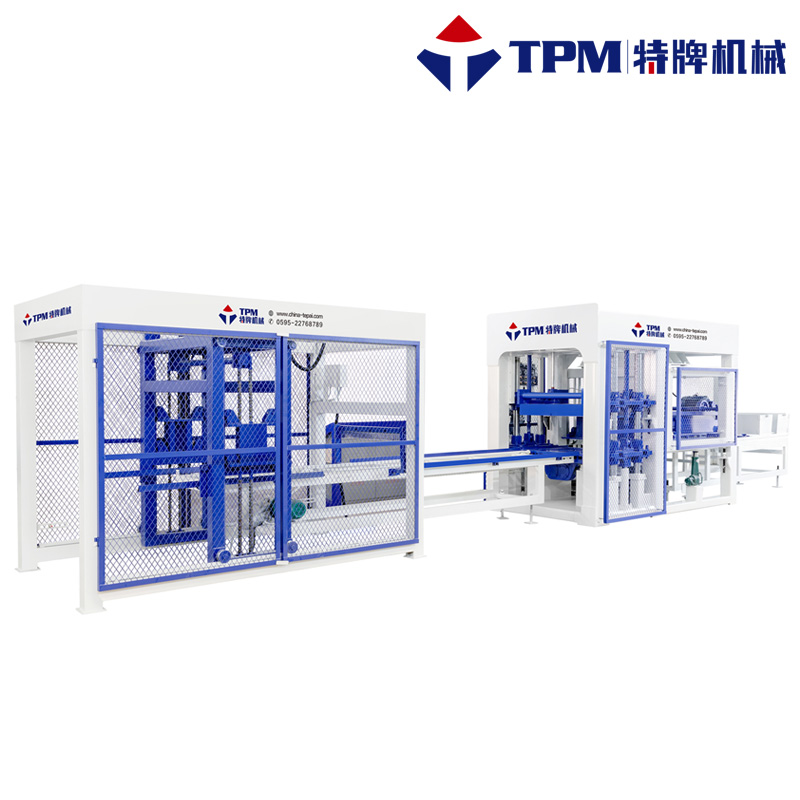

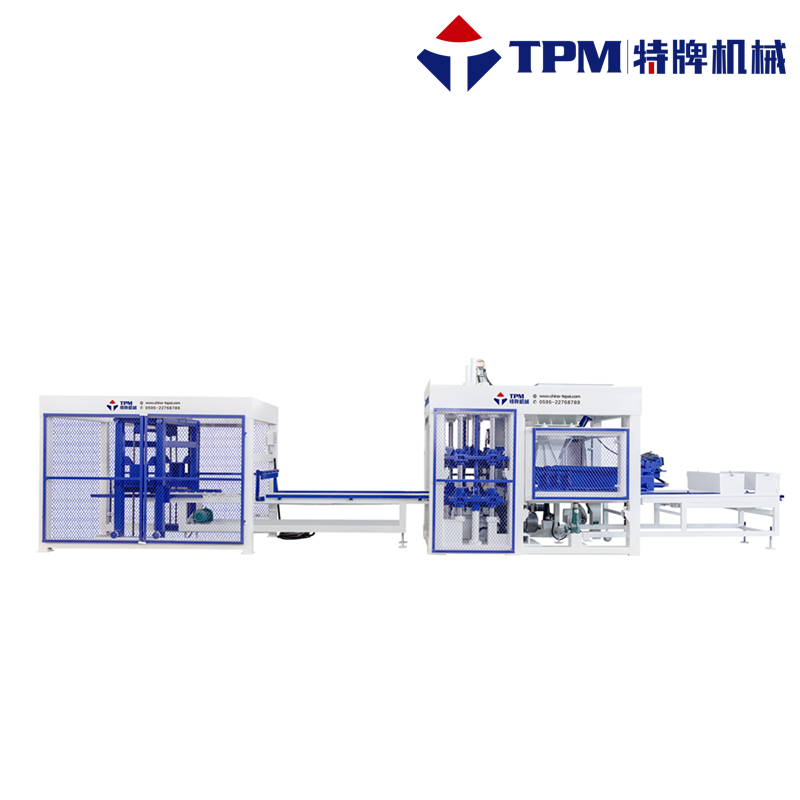

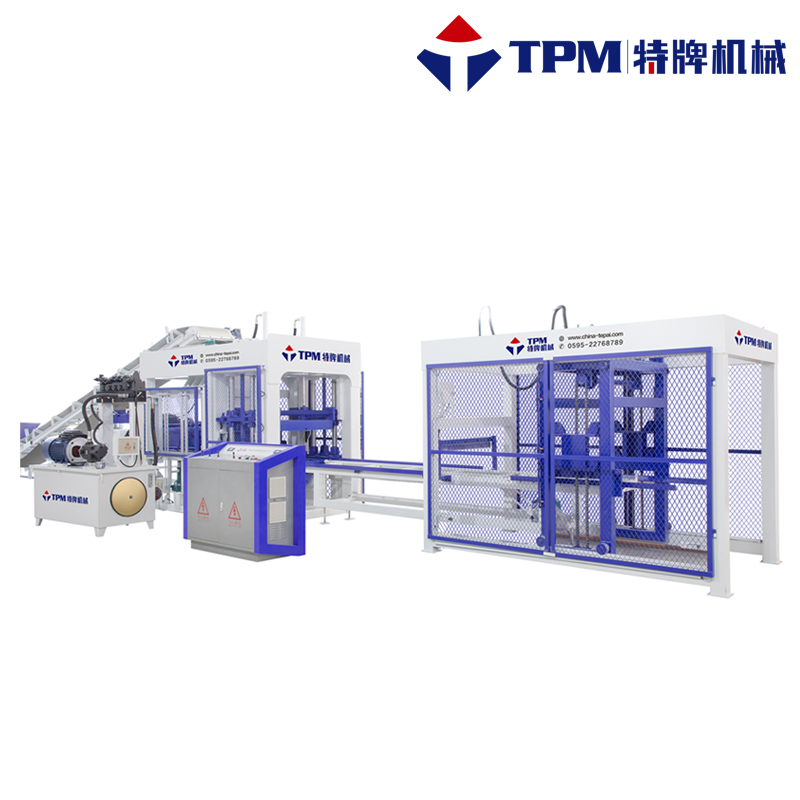

SIEMENS PLC Concrete Cement Block Manufacturing Machine TPM10000

Stronger machine, faster speed, higher production. TPM10000 is an extremely mature, stable and cost-effective concrete block making machine. The vibration is controlled by double frequency inverters and the force can be adjusted to ensure the quality of concrete products.

Pallet size: :
1250×850mm
Forming area: :
1190×800mm
Vibration force: :
100~120KN
Production height: :
50~200mm
Control system: :
German SIEMENS PLC
Power consumption: :
49.1KW
Machine weight: :
11 Ton (Without face hopper)

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

TPM10000 Cement Block Manufacturing Machine Production Video:

TPM10000 Automatic Concrete Brick Production Machine Technical Features:

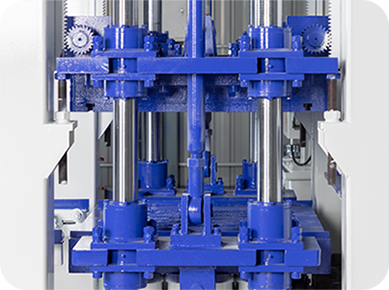

Heavy Duty Frame
The machine features a robust construction using 200×200×10mm thick square tubes for main columns and four φ80mm solid guiding rods, ensuring stability and durability.

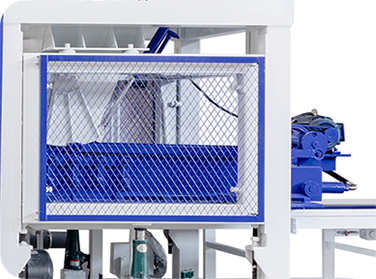

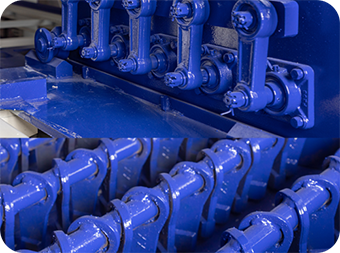

Efficient material feeding car
A high density rake teeth are adopted, thus concrete feeding is fast and uniform. The feeding car bottom plate is made of high strength wear-resistant steel, and the front end of feeding car adopts carburization and heat treatment.

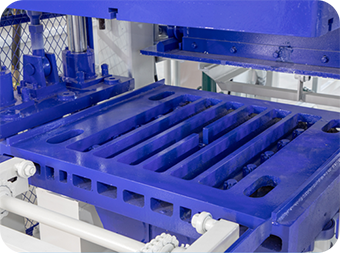

Integrated casted vibration table
The vibration table adopts integrated casting part to ensure balance and durability. The vibration box uses precise casting to ensure accuracy. The bearings are imported from Japan NSK, thus very durable..

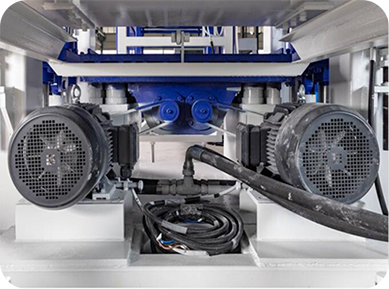

SIEMENS Vibration Motors

1) The vibration table for acceptance of two vibrators to achieve a maximum centrifugal force of 100KN;

2) Adopt two 11KW SIEMENS vibration motors, frequency can be adjusted to get different vibration force for higher strength paver blocks using less cement;

3) Short start and stop times of vibration due to small mass acceleration.

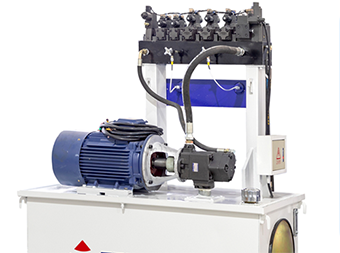

Advanced Italian hydraulic system

1）Adopt high dynamic double proportional guide valve, so that each action can automatically adjust the pressure and flow of system according to different load and speed requirements, to achieve fast movement without impact and save energy also；

2) Adopt 22KW SIEMENS hydraulic motor and LEAD-FLEX hydraulic oil pipes to ensure powerful mechanical movement.
Automatic feeding car lifting system
Can automatically go up & down via hydraulic cylinder or motor, greatly reduce save mold change time.

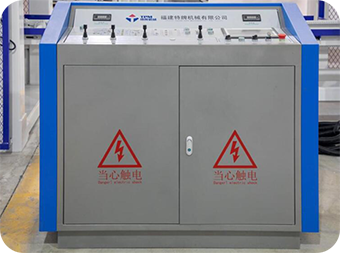

SIEMENS PLC Control System

1) Controlled by Germany Siemens PLC with data input and output function. The system has safety logic control and system fault self-diagnosis. It also has a self-locking function to avoid mechanical accidents caused by misoperation;

2) Electrical components adopt International brand Scheinder, which of high performance and locally available for spare parts.

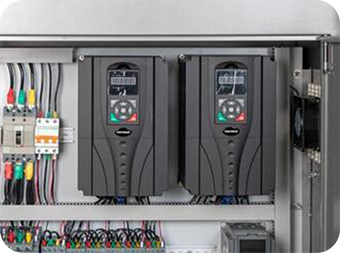

Vibration system controlled by two invertors
The dual frequency converters each control a variable frequency motor, which can ensure frequency synchronization, detect problems in the motor or circuit in a timely manner, easy for maintenance.

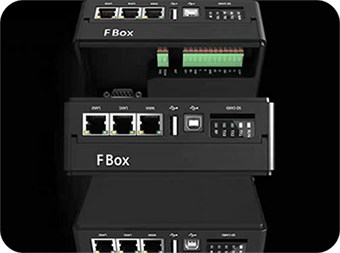

Online trouble shooting system
The online function of real-time monitoring and troubleshooting enables swift resolution of circuit faults and most electrical issues without delay.

TPM10000 Concrete Block Machine Technical Parameters
Pallet size: 1250×850mm	Vibration motor: 2×11KW Germany SIEMENS motor
Forming area: 1190×800mm	Casted steel vibration table
Control system: German SIEMENS PLC	Feeding car design: Hydraulic driven
Products height: 50~200mm	Hydraulic system: 22KW
Products strength: 7.5~60Mpa	Hydraulic system: 22KW
Cycle time: 12~20s	Power consumption: 49.1KW
Machine weight: 11 Ton(Without face hopper)	Vibration force: 100~120KN
Machine weight: 11 Ton(Without face hopper)	Vibration frequency: 50~60Hz

TPM10000 cement block machine production capacity in 8 hrs:
Size	Photos	Quantity Per Pallet	Max. Output In 8 Hours
400×200×200mm Hollow Blocks		10 pcs	15,000 pcs
230×70×110mm Solid Bricks		42 pcs	75,600 pcs
230×110×75mm Solid Bricks		27 pcs	48,600 pcs
200×100×60/80mm Holland Pavers		35 pcs	52,500 pcs (1,050 sq. mtrs)
225×112.5×60/80mm Zigzag Pavers		27 pcs	40,500 pcs (1,025 sq. mtrs)

Note: Above production capacity is approximate indications and depends on block making machine settings, mix design, type of aggregates, operator's experience, numbers of pallets(need to prepare enough pallets), etc...

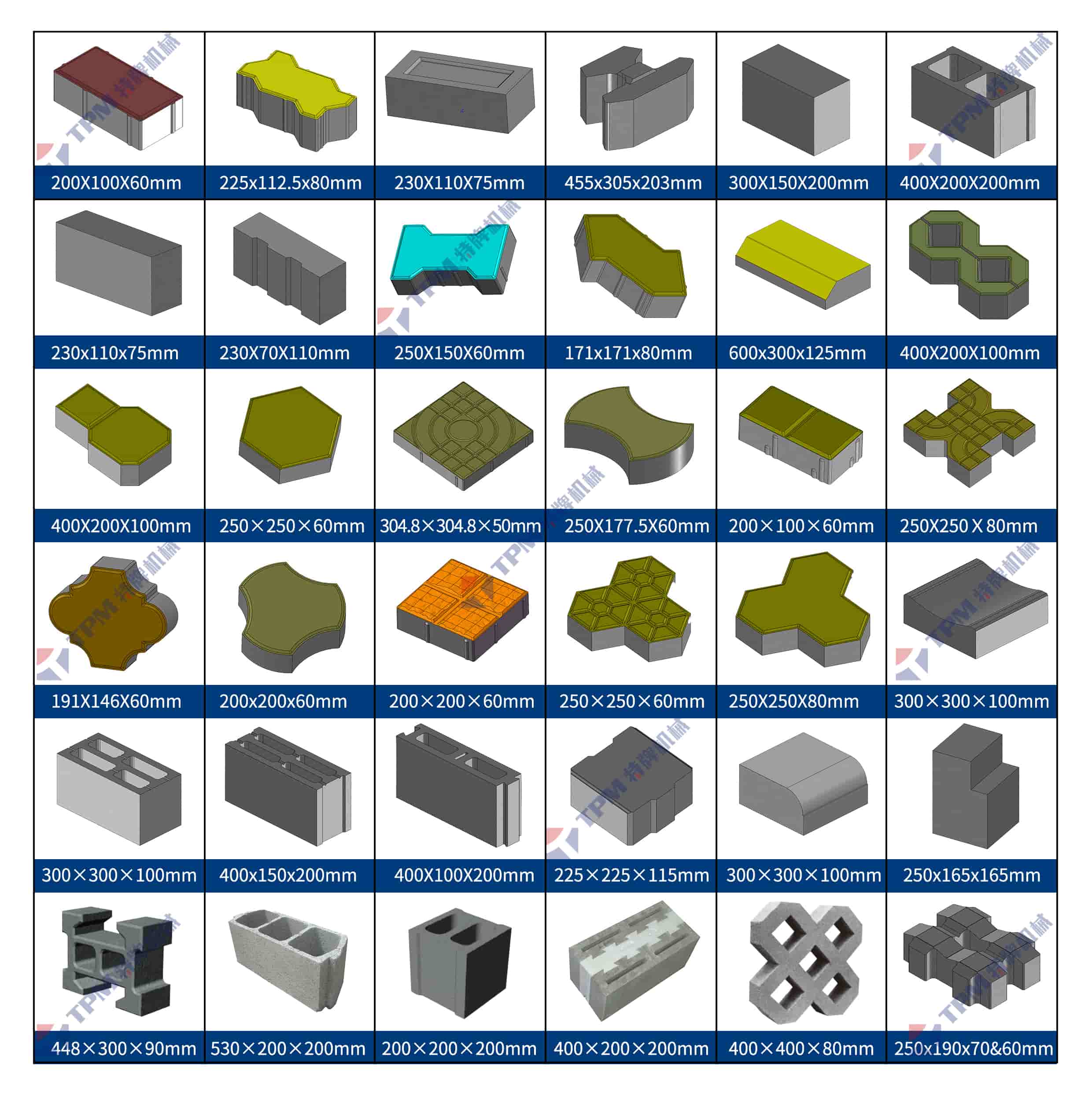

Finished Products Manufactured By Paver Block & Cement Brick Machine, Hollow Blocks/Solid Blocks/Solid Bricks/Kerbstone/Interlocking Pavers/Flyash Bricks Making Machine
