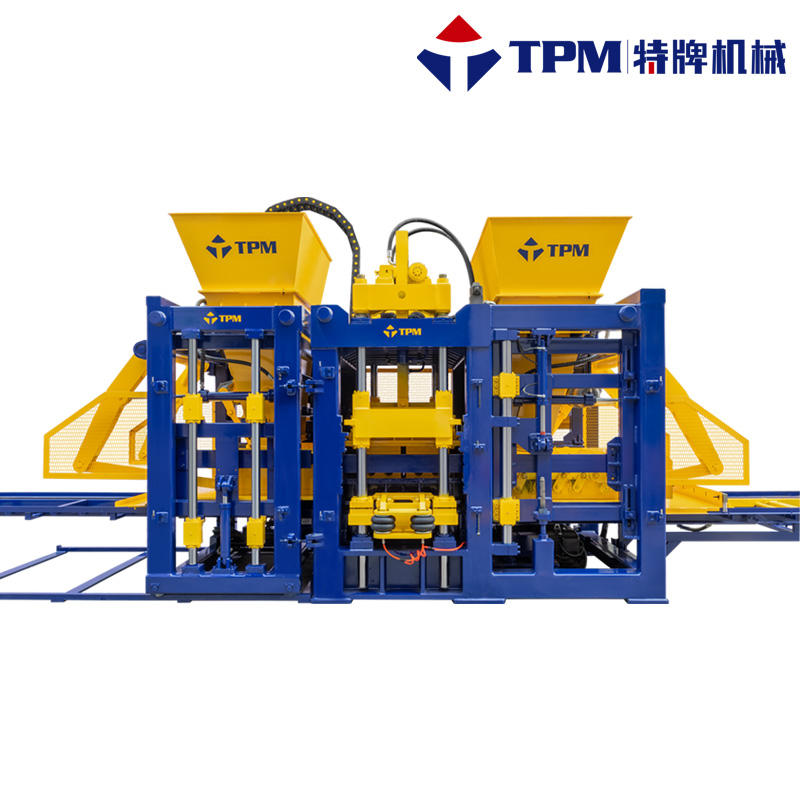

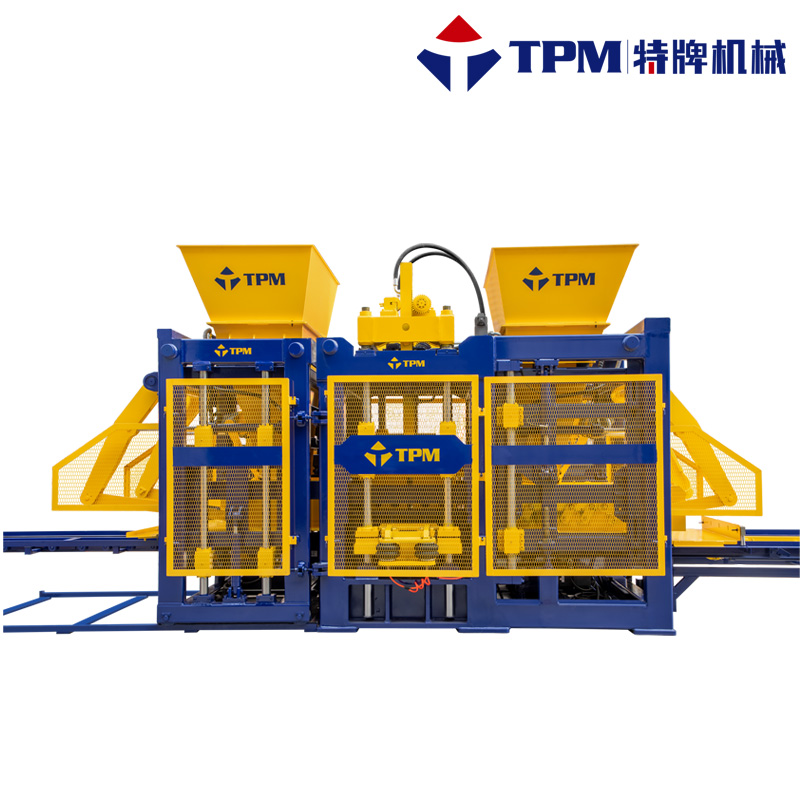

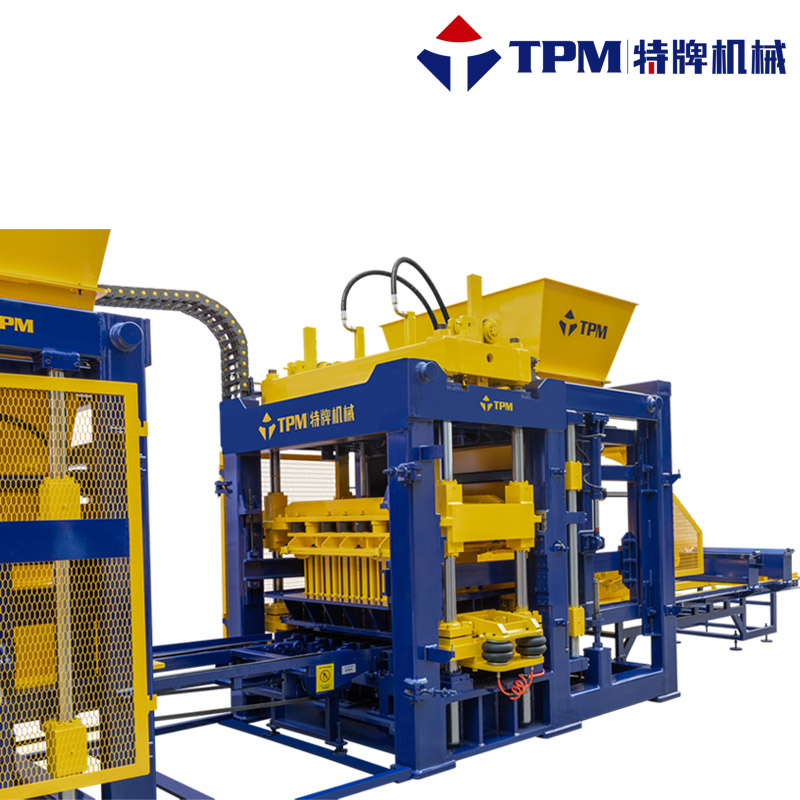

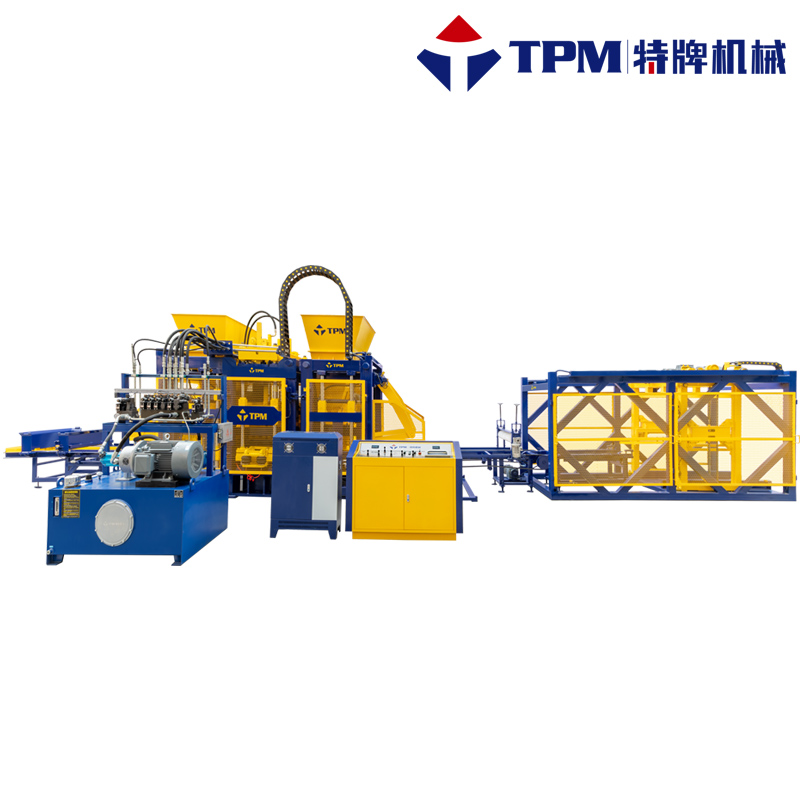

TPM9000G automatic paver block making machine combines the technology from GERMANY SIEMENS PLC control system and Italian Phase Servo Vibration. The main machine frame structure is of heavy-duty and robust design.

  • Pallet size: :

    1350×700×30mm
  • Forming area: :

    1300×650mm
  • Vibration force: :

    100~120KN
  • Production height: :

    50~200mm
  • Control system: :

    SIEMENS PLC Control
  • Power consumption: :

    60.35KW
  • Machine weight: :

    16.5T(With face hopper)

High level automatic block making machine video:



TPM9000G automatic paver and block machine technical details:

  • advanced servo block machine
    Strong servo vibration

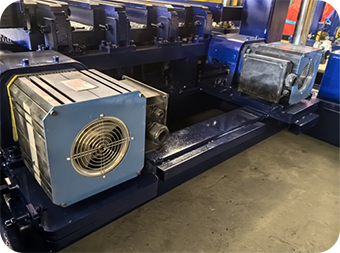

    Less noise compared to traditional electric vibration motors. The servo drive control unit can ensure two servo motors are in the synchronized status, guarantee the vertical output of compaction force. The start-up and end-up of servo vibration is approx. 1 seconds faster, help shorten cycle time, greatly improve production capacity. It also effectively reduce energy consumption by 15% & braking effect is better.
  • Heavy duty block machine

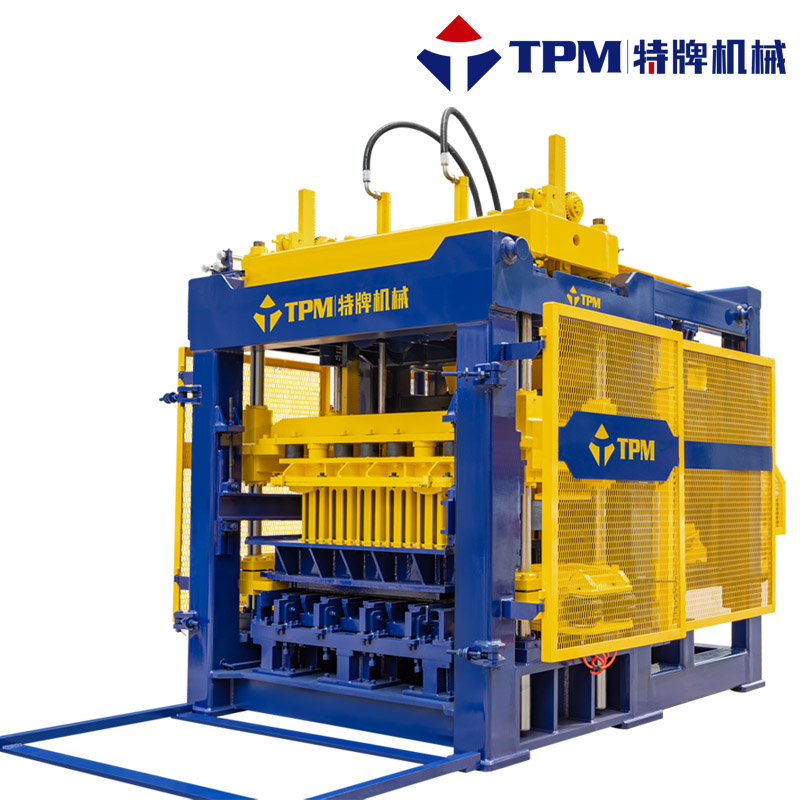

    Heavy Duty Frame

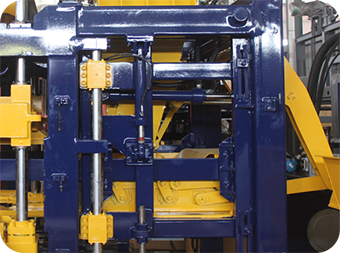

    The main machine columns are constructed with 200×200×10mm thick square tubes, accompanied by four Φ80mm solid guide-columns to enhance stability and durability. The specially designed synchronous system ensures precise and stable machine movements.
  • concrete feeding car

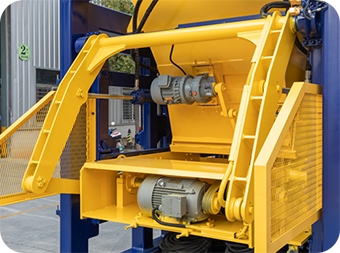

    Advanced Material Feeding Car
    Double swing arms driven feeding car, equips with wear-resistant feeding rails and wear-resistant bottom plate, compulsory rotating mold filling, ensure the molding filling very fast and even, ensure the density and production output of the concrete products. The rakers are controlled by a SIEMENS motor via frequency invertor, allowing for adjustable filling speeds based on the type of blocks being produced.
  • air bag systme block machine

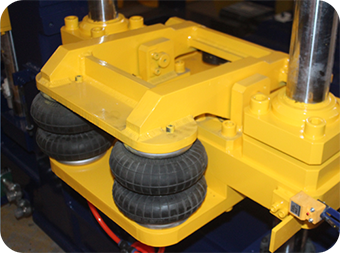

    Air bag system
    Save mold change time(Just need 30~40 minutes), help improve mold lifetime with less noise during paver block production.

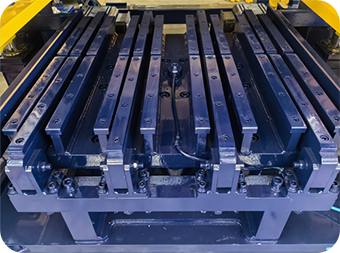

  • Static & dynamic table
    Static & dynamic table
    Can control vibration amplitude, ensure higher energy transfer efficiency.
  • Hydraulic press block making machine

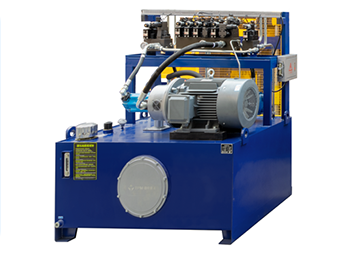

    High efficient hydraulic system
    Adopt 30KW SIEMENS hydraulic motor, Italian VTOZ valves and American Albert Hydraulic Pump to efficiently control the hydraulic oil flow and pressure, thus machine speed and mechanical movement is powerful and accurate.

  • TPM9000G base hopper discharge
    Base hopper discharge
    Materials hopper discharging controlled by electrical motor & Guomao Reducer, the movements are softly and low breakdown rate.
  • servo drive control system

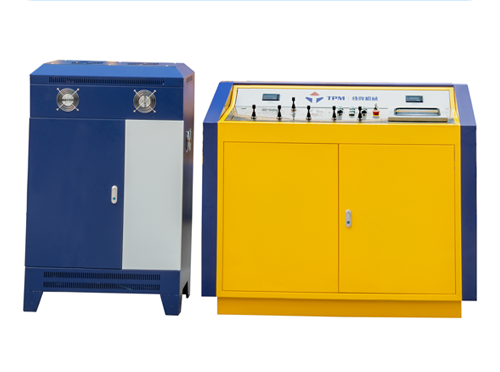

    Servo drive control system
    The vibration system is controlled by Germany SIEMENS PLC with safety logic control and troubleshooting functions, protect the machine from broken, diagnosis and solve the problem automatically.

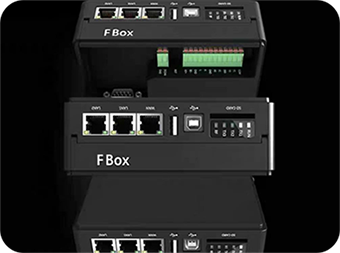

  • Online trouble shooting system
    Online Trouble Shooting System
    The equipment features a remote control system for real-time monitoring of operational status. This system aids in identifying and addressing circuit faults promptly, with most electrical issues resolved without delay.



TPM9000G Technical Parameters
Pallet size: 1350×700mm Vibration force: 2×12.8KW (Italy PHASE Servo Vibration Motors), dynamic and static structure vibration table
Forming area: 1300×650mm
Control system: Germany SIEMENS PLC Feeding car design: Double swing arms driven
Products height:50~200mm Hydraulic system: 30KW SIEMENS hydraulic motor
Use Italian VTOZ valves and American Albert hydraulic pump
Products strength: 7.5~60 Mpa
Cycle time: 15~20s Power consumption: 60.35KW
Machine weight:
16.5Ton (With face hopper)
Vibration force: 100~120KN
Vibration frequency: 50~60Hz



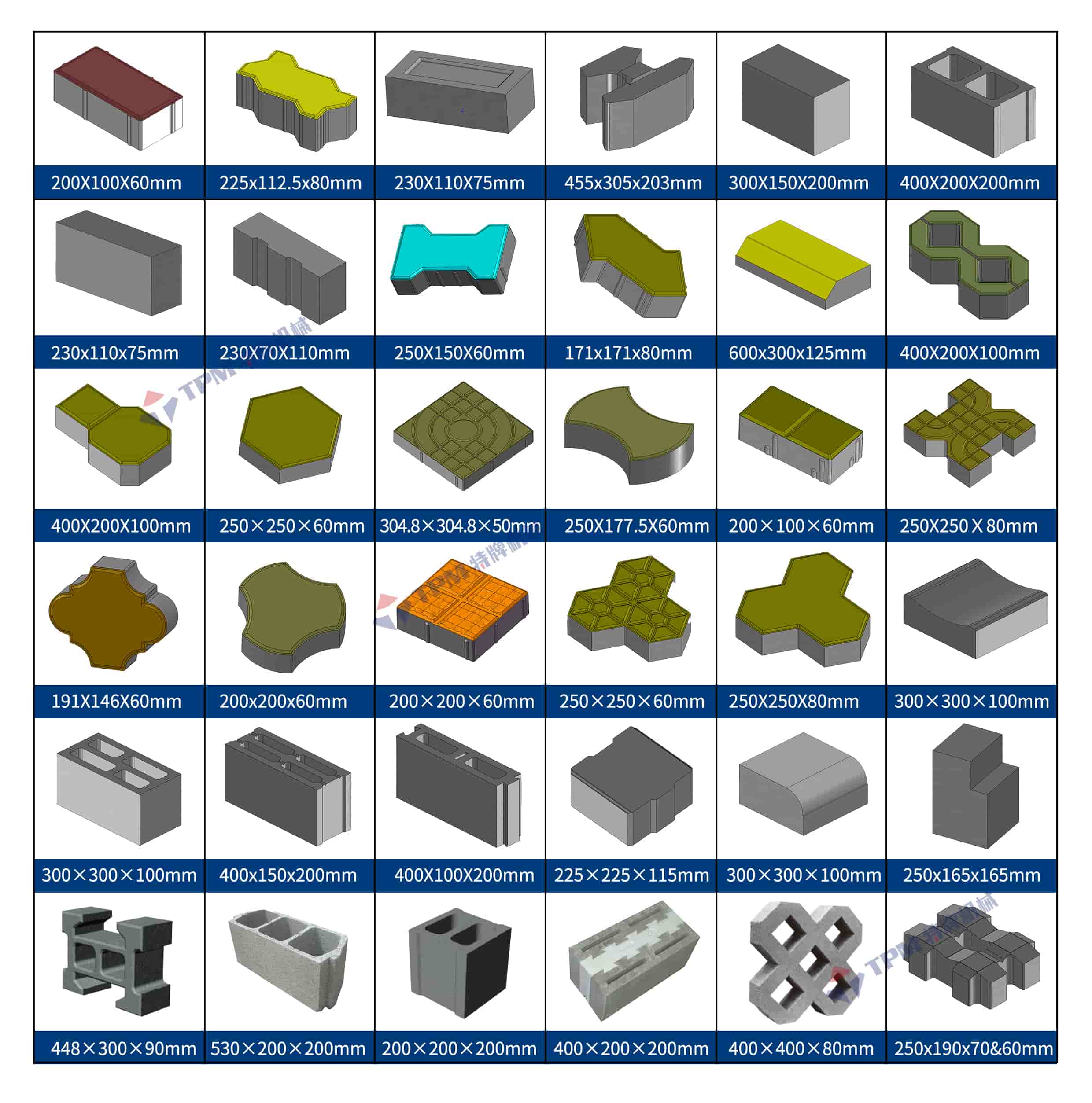

TPM9000G Block Brick Machine Production Capacity in 8 hours:
Size Photos Quantity Per Pallet Maximum Output In 8 Hours
400×200×200mm Hollow Block Concrete hollow block 9 pcs 13,500 pcs
230×110×70mm Solid Brick Flyash bricks 40 pcs 72,000 pcs
230×110×75mm Solid Brick 25 pcs 45,000 pcs
200×100×60mm Holland Paver paver block 36 pcs 54,000 pcs
225×112.5×80mm Zigzag Paver Interlocking pavers 25 pcs 37,500 pcs

Remarks: The above production is approximate indications and depends on machine settings, mix design, type of aggregates, operator’s experience, numbers of pallets (need to prepare enough pallets), etc
