China TPM6000G Paver Block Making Machine

Home

European Design Concrete Paver Block Machine

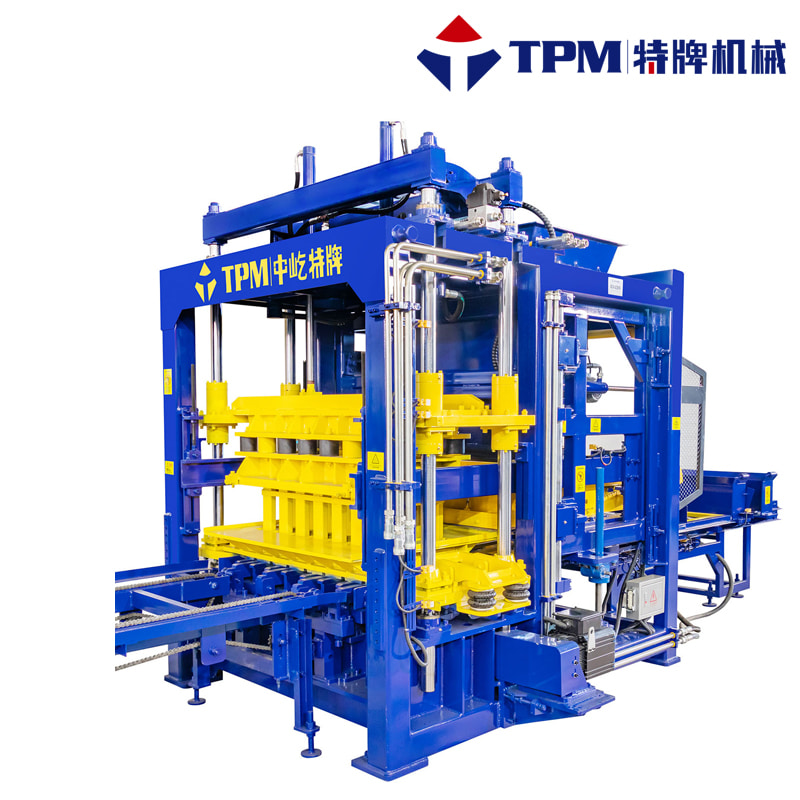

China TPM6000G Paver Block Making Machine

Experience the precision and stability of the European Standard TPM6000G Block Machine, designed for high-quality Interlocking Paver Manufacturing with an advanced airbag mold clamping system. TPM6000G is a best-seller in TPM products. Thanks to its stability, build quality, low maintenance cost, and ability to consistently produce high-strength pavers for road, walkway, and heavy-duty paving projects.

Pallet size: :
880×680mm
Forming area: :
830×630mm
Vibration force: :
60~80KN
Production height: :
50~200mm (Possible hightened to 500mm)
Control system: :
Germany SIEMENS PLC Control
Power consumption: :
41.5KW
Machine weight: :
8 tons(Hoist Machine)

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

European Standard TPM6000G Block Machine Running In Latin America | Zigzag Paver Manufacturing with Airbag Mold Clamping

Product Technical Features:

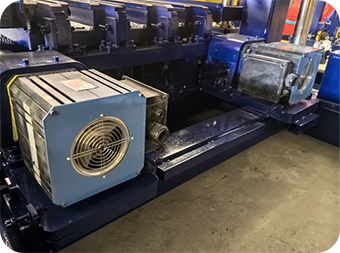

Two inverter-controlled permanent magnet servo vibration motors
TPM block making machine adopts two 9KW permanent magnet servo motors (Belt connection, controlled by two inverters) to adjust the vibration force and ensure best possible synchronization and performance.

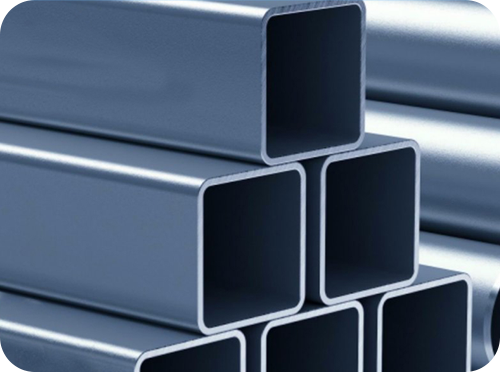

Robust machine frame made by 150×150mm square tube
Strongest block machine frame in this industry with Japanese Panasonic pulse welding, ensuring machine withstand rigors of heavy use and produce high quality concrete blocks consistently.

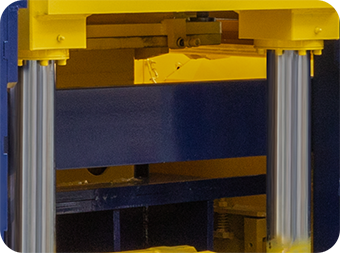

High-strength, wear-resistant φ70mm solid guide columns
The thickest plating layer to ensure maximum durability and longevity of the guide columns.

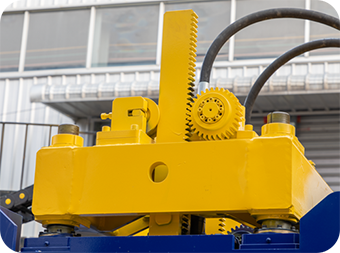

Advanced synchronization brings precise & smooth mechanical movement
The demolding system features a synchronization frame and a tooth row structure that work together to maintain synchronization and ensure smooth demoldinig. Double oil cylinders are adopted for tamper head up & down synchronization.

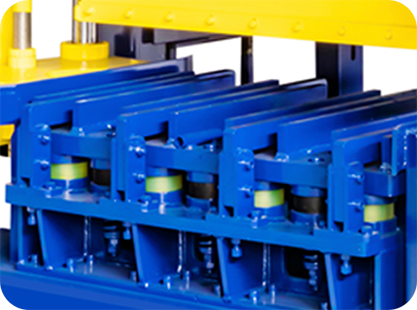

Wear-resistant Dynamic and Static Structure Vibration Table
Vibration table features dynamic and static table structure. The table plate is made of high-strength and wear-resistant steels for durability. The gap between dynamic and static table is adjustable, so can control vibration amplitude for higher energy transfer efficiency.

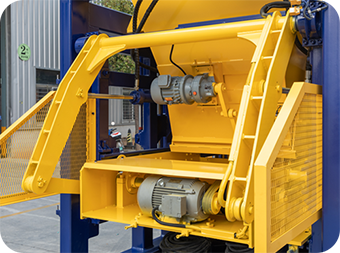

Swing arm designed feeder car, powered by SIEMENS motor and speed controlled by frequency inverter
Feeding car is driven by double swing arms. The arms together with feeding car rakers are controlled by SIEMENS motor and the speed is precisely adjusted via an inverter, thus can easily feed concrete into cavities based on different types of pavers and blocks.

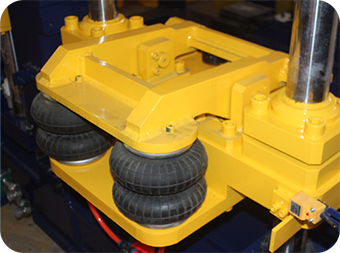

Airbags mold clamping system, greatly reduce mold replacement time
TPM6000G model block machine is equipped with airbags mold clamping, greatly reduce mold replacement time, help improve mold lifetime with less noise during brick production.

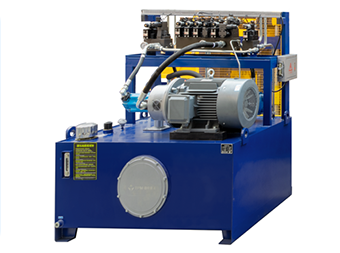

Italian Hydraulic System
Italian hydraulic system with high dynamic dual proportional valves for efficiently control hydraulic oil flow and pressure, ensuring powerful machine actions and speed.

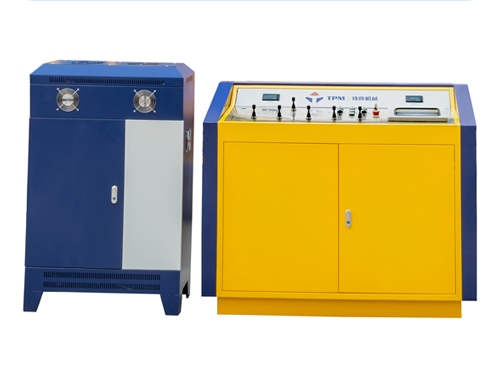

Germany SIEMENS PLC and online Remote Service System
Machine is powered by German SIEMENS PLC control system, which has been time-proven to ensure stable and consistent machine performance. The remote service system enables us to provide our clients with fast and efficient technical support, reducing downtime.

TPM6000G Technical Parameters
Pallet size: 880×680×25mm	Vibration Force: 2×9KW (Frequency Inverter Controlled)
Forming area: 830×630mm	Dynamic and static structure vibration table
Control system: Germany SIEMENS PLC	Feeding car design: Double swing arms driven, powered by SIEMENS motor
Products height: 50~200mm (Possible heightened to 300mm)	Hydraulic system: 18.5KW SIEMENS motor, Japanese Yuken valves, Youshun Hydraulic Pump
Products strength: 7.5~60MPa
Cycle time: 12~20s	Power consumption: 41.5KW
Machine weight: 8 Ton (Hoist Machine)	Vibration force: 60~80KN
Machine weight: 8 Ton (Hoist Machine)	Vibration frequency: 0-70Hz(4,500 rpm)

TPM6000G Production Capacity in 8-10 hours:
Size	Photos	Quantity per cycle	Output in 8-10 hours
400×200×200mm 8 inch CHB Block		6 pcs	7,000-9,000 pcs
390×140×190mm M140 Block		8 pcs	9,000-12,000 pcs
210×100×70mm Stock Brick		24 pcs	36,000-43,200 pcs
230×110×75mm Fly Ash Brick		15 pcs	22,500-27,000 pcs
240×115×70mm Solid Brick		24 pcs	36,000-43,200 pcs
200×100×60mm Rectangular Paver		21 pcs	21,000-31,500 pcs (420-630 sq. mtrs)
225×112.5×80mm Zigzag paver		15 pcs	15,000-22,500 pcs (380-570 sq. mtrs)

Remarks: The above production is approximate indications and depends on machine settings, mix design, type of aggregates, operator’s experience, numbers of pallets (need to prepare enough pallets), etc

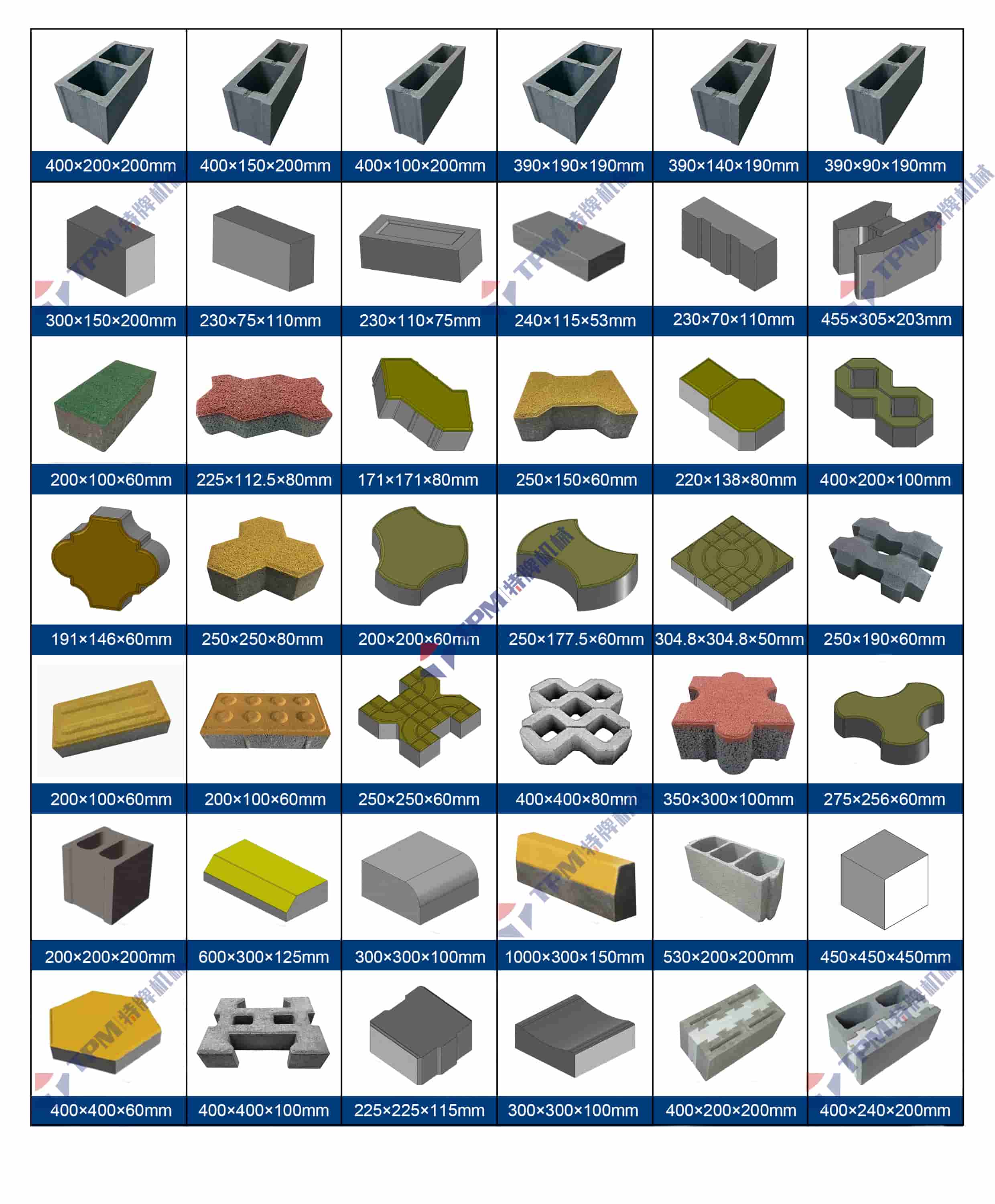

Different types of concrete block products made by TPM6000G paving block production machines, such as hollow concrete block, paving stones, kerbstones etc.:
