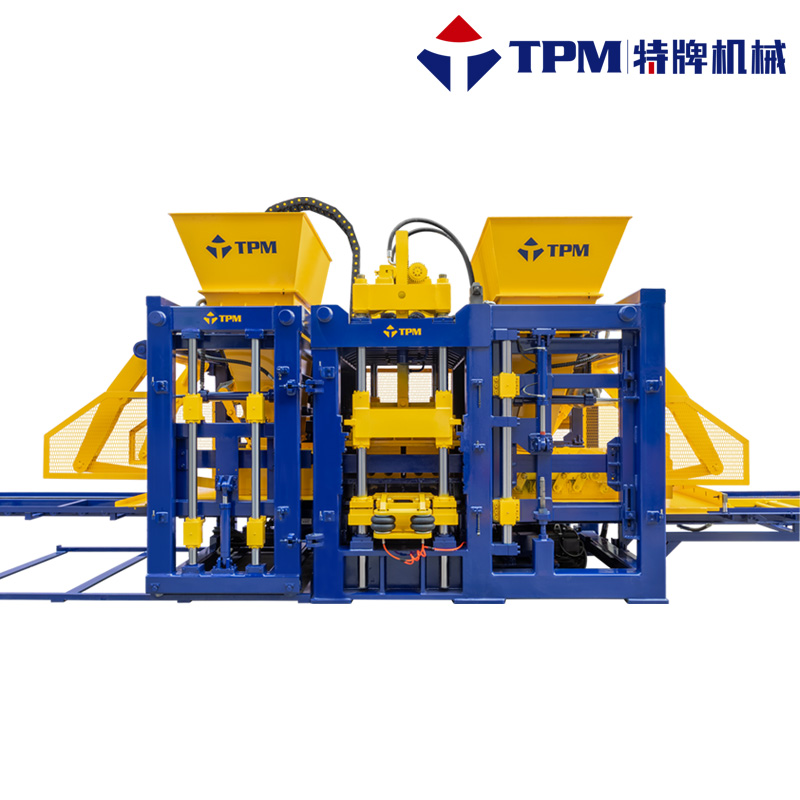

High Pressure Interlocking Paving Brick Machine Manufacturers (TPM8000G)

Home

European Design Concrete Block Machine

High Pressure Interlocking Paving Brick Machine Manufacturers (TPM8000G)

High Pressure Interlocking Paving Brick Machine Manufacturers (TPM8000G)

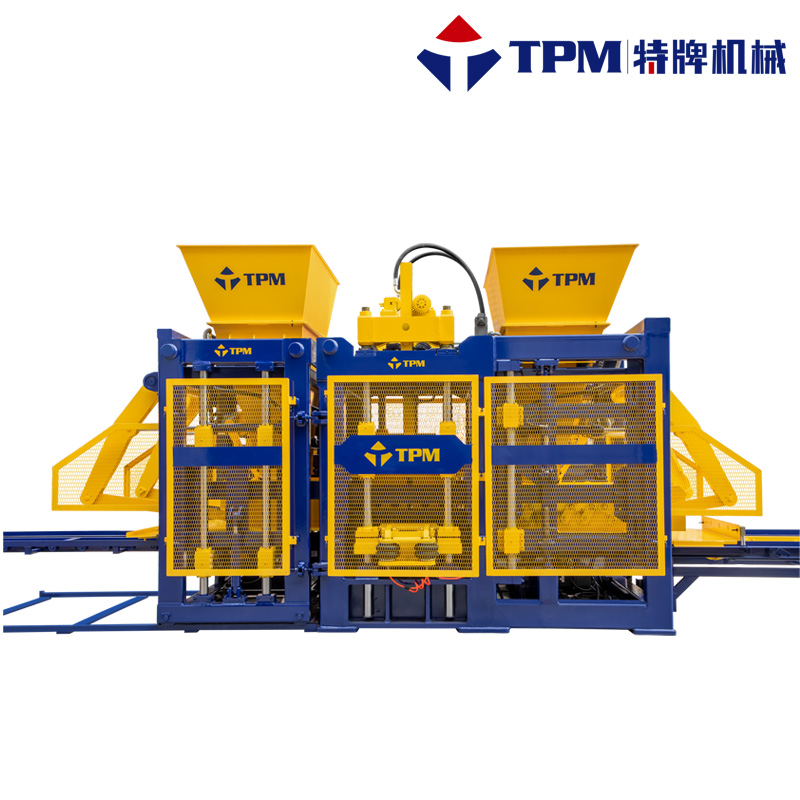

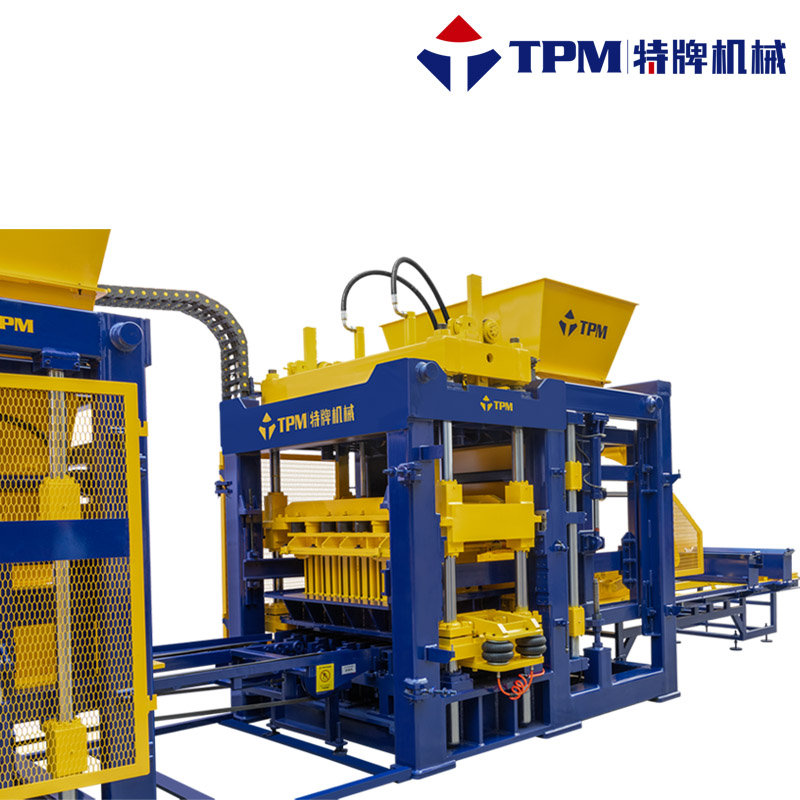

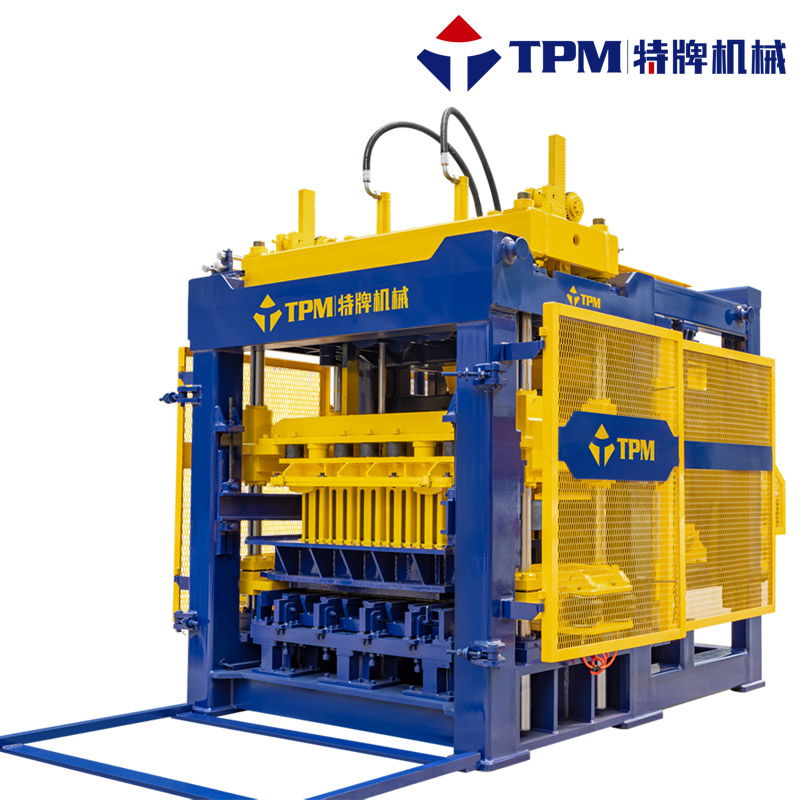

The European specification TPM8000G block brick machine is designed to focus on producing the concrete products such as paving bricks, interlocking bricks, paver blocks, kerbstones etc.

  • Pallet size: :

    980×860×25mm
  • Forming area: :

    900×800mm
  • Vibration force: :

    80~100KN
  • Production height: :

    50~200mm

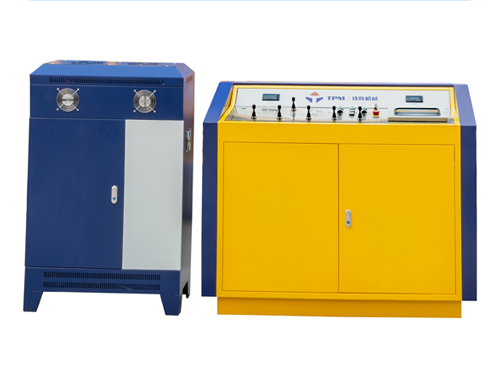

  • Control system: :

    Germany SIEMENS PLC Control
  • Power consumption: :

    60.35KW
  • Machine weight: :

    13.5 Ton (With face hopper)

    Fully automatic TPM8000G Concrete Paver Block Machine Video:




Technical features for TPM8000G automatic interlocking block brick making machine

  • #

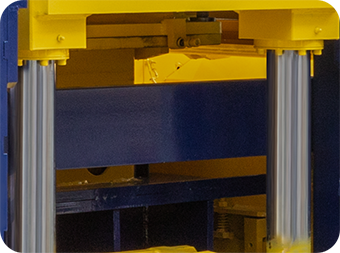

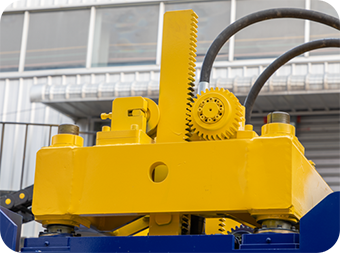

    Advanced synchronization brings precise & smooth mechanical movement

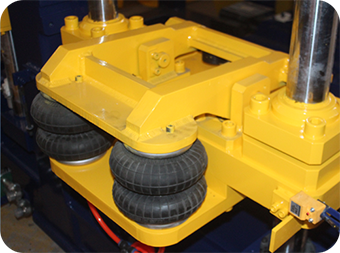

    The demolding system features a synchronization frame and a tooth row structure that work together to maintain synchronization and ensure smooth demolding. Double oil cylinders and a tooth row structure are adopted for tamper head up & down synchronization, thus can move smoothly and precisely.
  • #

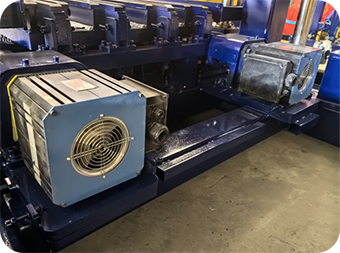

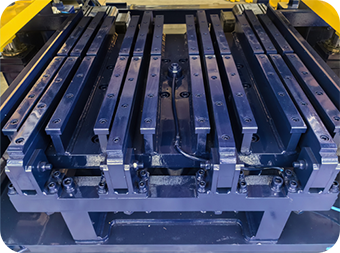

    Wear-resistant dynamic and static vibration table
    Vibration table features dynamic and static table structure. Its table plate is made of high-strength and wear-resistant steel for durability. The gap between dynamic and static table is adjustable, so can control vibration amplitude for higher energy transfer efficiency.
  • #

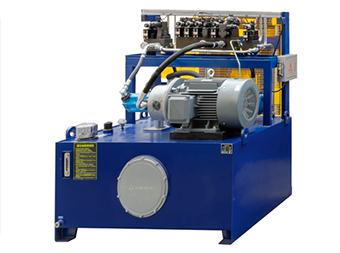

    High-efficient and stable Italian VTOZ hydraulic system
    Powered by 22KW SIEMENS hydraulic motor, Italian VTOZ valves and American Albert Hydraulic Pumps to efficiently control hydraulic oil flow and hydraulic pressure, ensure speedy, accurate and powerful actions.






TPM8000G Technical Parameters
Pallet size: 980×860mm Vibration Force: 2×12KW (Permanent magnet vibration motors, Option: Italian Phase Servo motors),
Forming area: 900×800mm

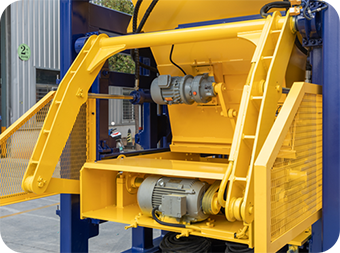

Control system: SIEMENS PLC Control Feeding car design: Double swing arms driven
Products height: 50~200mm Hydraulic system: 22KW SIEMENS hydraulic motor, Italian VTOZ valves and American Albert Hydraulic Duplex Pumps
Products strength: 7.5~60 Mpa
Cycle time: 15~20s Power consumption:60.35KW
Machine weight: 13.5Ton (With face hopper) Vibration force: 80~100KN
Vibration frequency:50~60Hz



TPM8000G Stock Brick Machine Production Capacity in 8~10 Hours:
Size Photos Quantity Per Pallet Output in 8~10 hours
400×200×200mm hollow block 400×200×200mm hollow block 8 pcs 9,000~12,000 pcs
400×150×200mm Hollow Block 400×150×200mm hollow block 10 pcs 10,000~15,000 pcs
210×100×70mm Stock Brick 36 pcs 54,000~64,800 pcs
230×110×75mm Solid Brick(Flat) 230×110×75mm Solid brick 21 pcs 31,500~37,800 pcs
240×115×70mm Solid Brick Solid brick 33 pcs 49,500~59,400 pcs
200×100×60mm holland paver 32 pcs 32,000~48,000 pcs
(640~960 sq. mtrs)
225×112.5×80mm Zigzag paver 21 pcs 21,000~31,500 pcs
(530~800 sq. mtrs)

Remarks: The above production is approximate indications and depends on machine settings, mix design, type of aggregates, operator’s experience, numbers of pallets (need to prepare enough pallets), etc

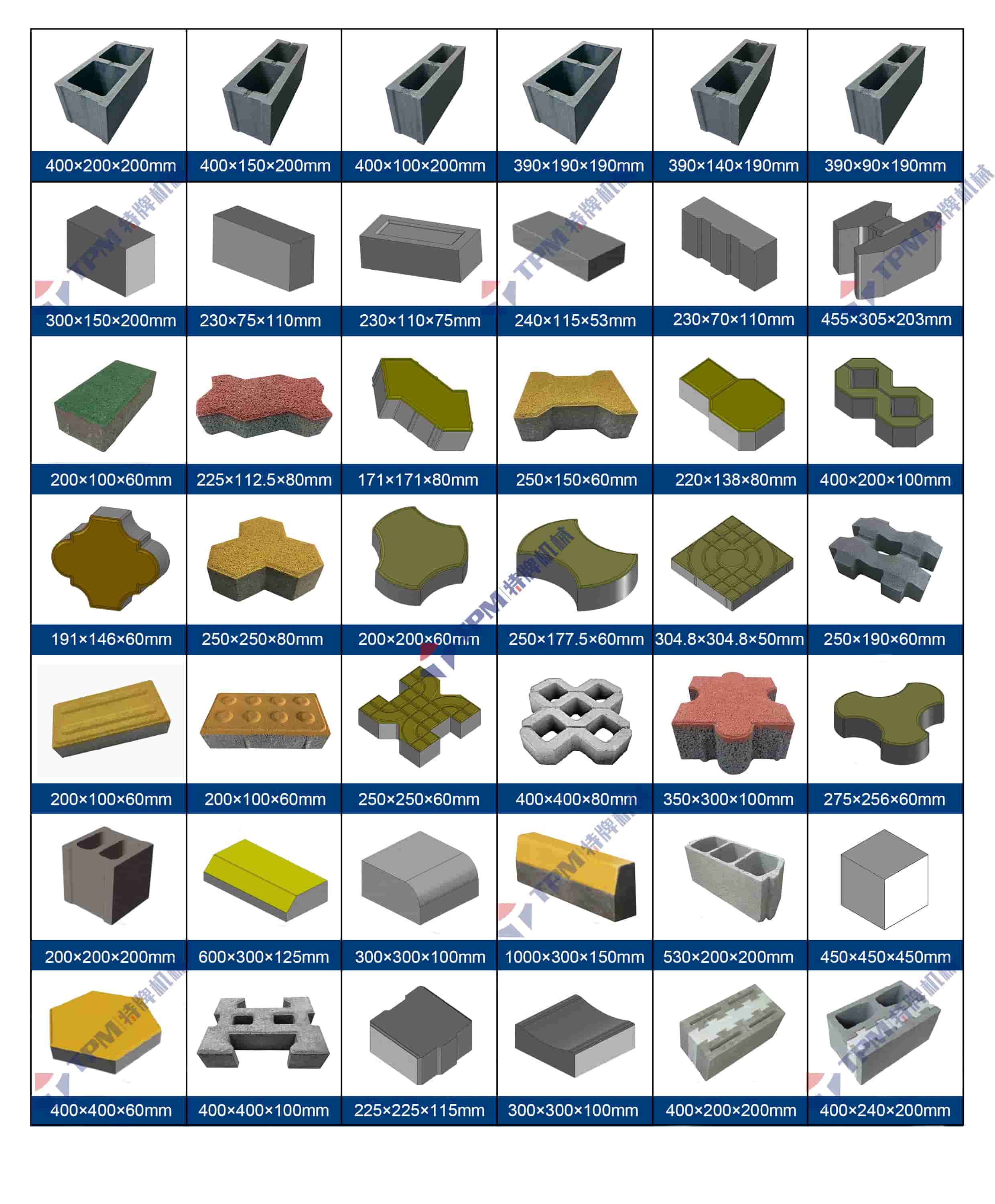

Finished concrete products manufactured by TPM8000G Stock Concrete Paving Brick Molding Machine, Stock Bricks, Maxi Bricks, Flyash Bricks, Hollow Concrete Blocks, Solid Concrete Blocks etc.
