Fully Automatic Concrete Paver Block Making Machine Manufacturer in China(TPM10000G)

Home

European Design Concrete Block Machine

Fully Automatic Concrete Paver Block Making Machine Manufacturer in China(TPM10000G)

Fully Automatic Concrete Paver Block Making Machine Manufacturer in China(TPM10000G)

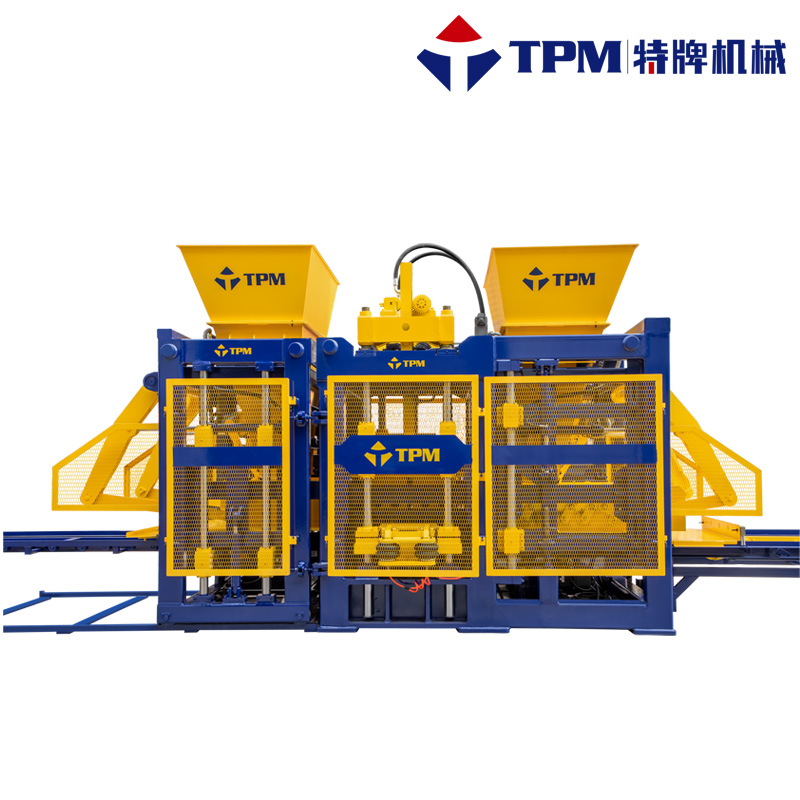

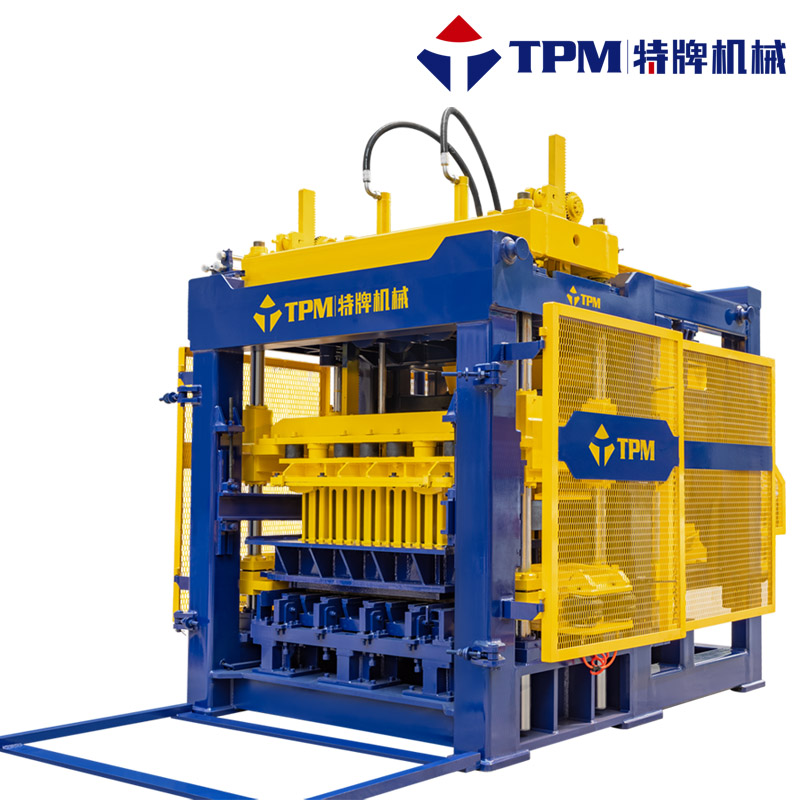

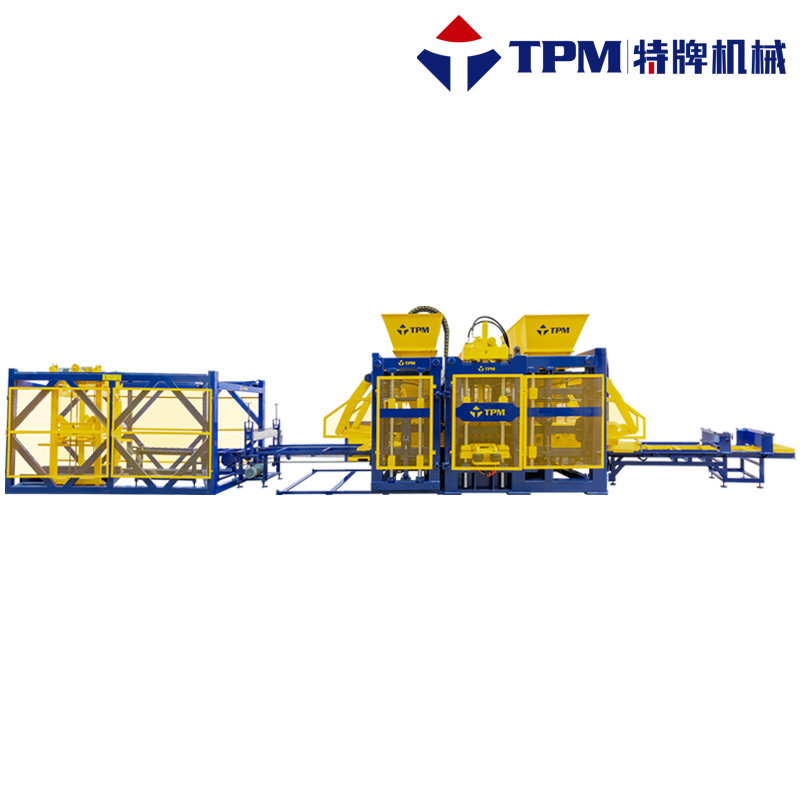

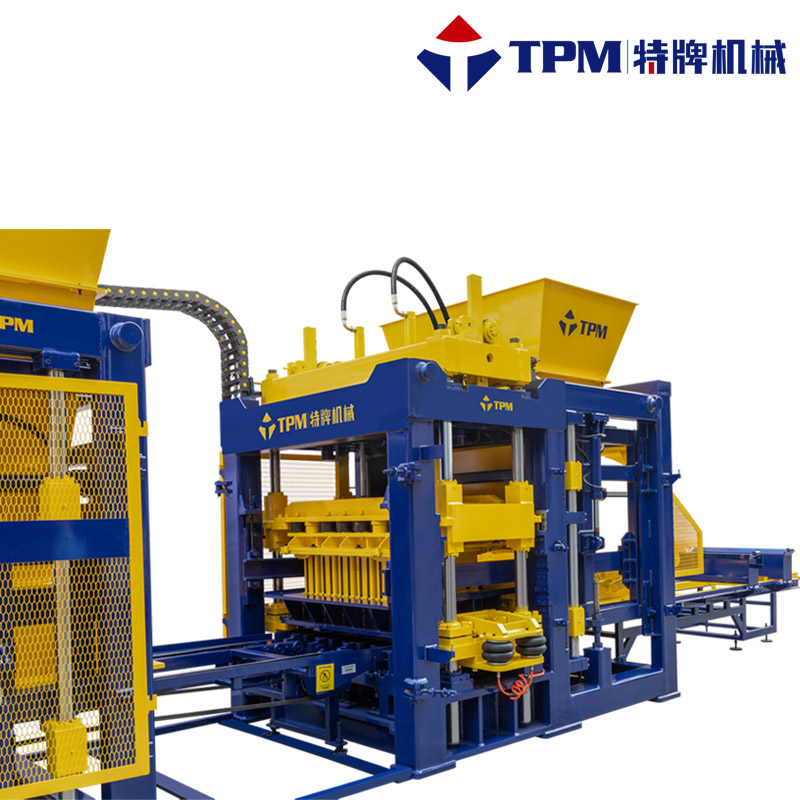

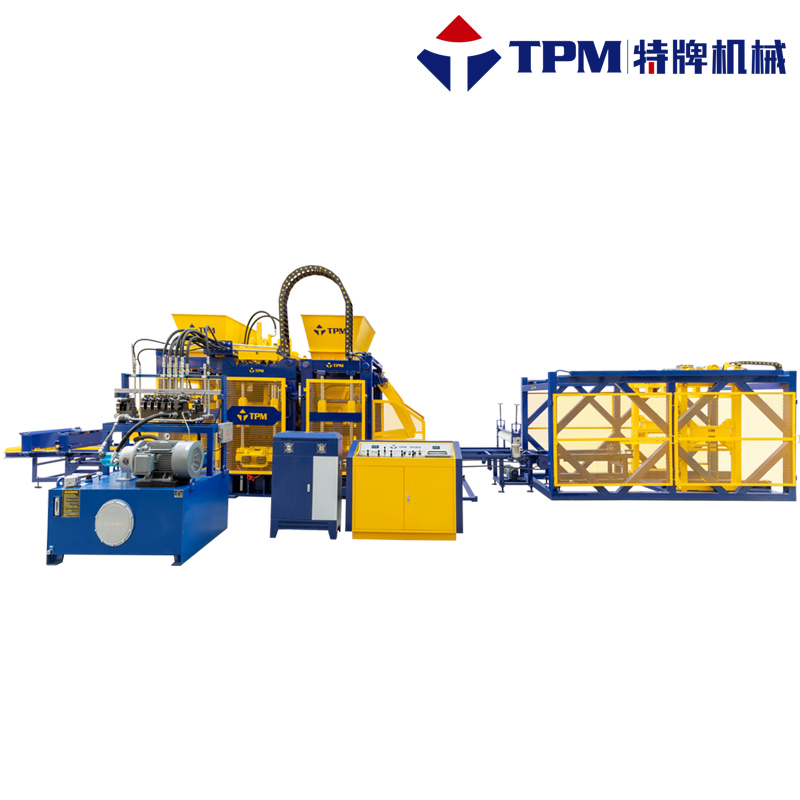

TPM10000G automatic paver block making machine combines the technology from GERMANY SIEMENS PLC control system and Italian Phase Servo Vibration. The main machine frame structure is of heavy-duty and robust design.

  • Pallet size: :

    1100×950×30mm
  • Forming area: :

    1040×900mm
  • Vibration force: :

    100~120KN
  • Production height: :

    50~200mm
  • Control system: :

    SIEMENS PLC Control
  • Power consumption: :

    60.35KW
  • Machine weight: :

    16.5T(With face hopper)

TPM10000G automatic concrete paver and block machine videos:



TPM10000G technical features:

  • #
    Strong servo vibration

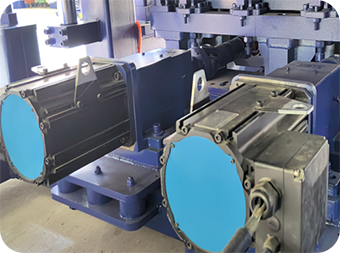

    Less noise compared to traditional electric vibration motors. The servo drive control unit can ensure two servo motors are in the synchronized status, guarantee the vertical output of compaction force. The start-up and end-up of servo vibration is approx. 1 seconds faster, help shorten cycle time, greatly improve production capacity. It also effectively reduce energy consumption by 15% & braking effect is better.
  • #

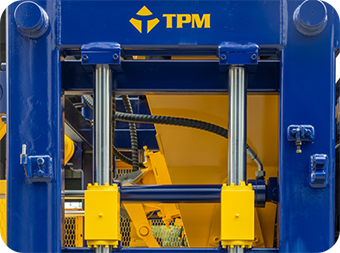

    Heavy Duty Frame

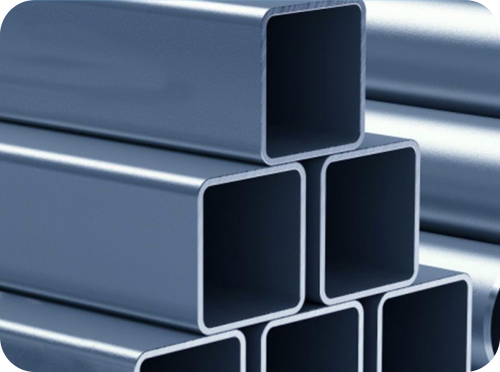

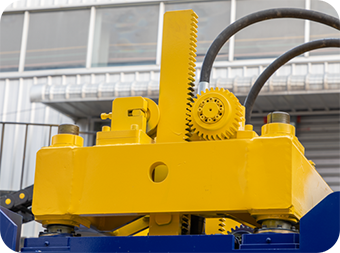

    The main machine columns are constructed with 200×200×10mm thick square tubes, accompanied by four Φ80mm solid guide-columns to enhance stability and durability. The specially designed synchronous system ensures precise and stable machine movements.
  • #
    Advanced Material Feeding Car

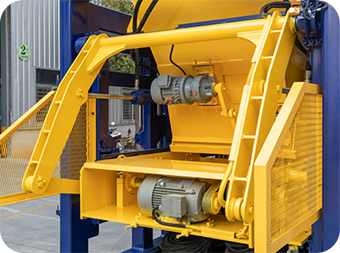

    Double swing arms driven feeding car, equips with wear-resistant feeding rails and wear-resistant bottom plate, compulsory rotating mold filling, ensure the molding filling very fast and even, ensure the density and production output of the concrete products. The rakers are controlled by a SIEMENS motor via frequency invertor, allowing for adjustable filling speeds based on the type of blocks being produced.
  • #

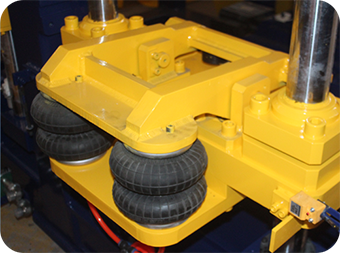

    Air bag system
    Save mold change time(Just need 30~40 minutes), help improve mold lifetime with less noise during paver block production.
  • #

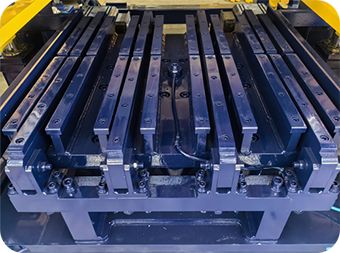

    Static & dynamic table
    Can control vibration amplitude, ensure higher energy transfer efficiency.
  • #

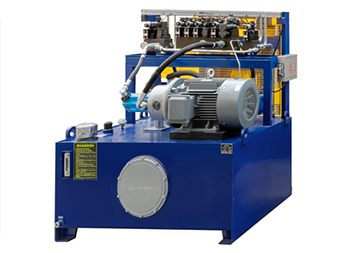

    High efficient hydraulic system
    Adopt 30KW SIEMENS hydraulic motor, Italian VTOZ valves and American Albert Hydraulic Pump to efficiently control the hydraulic oil flow and pressure, thus machine speed and mechanical movement is powerful and accurate.
  • #
    Base hopper discharge
    Materials hopper discharging controlled by electrical motor & Guomao Reducer, the movements are softly and low breakdown rate.
  • #

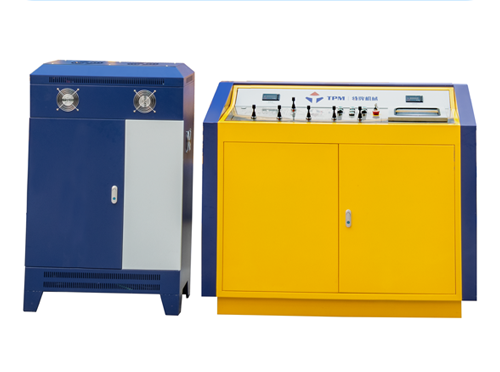

    Servo drive control system
    The vibration system is controlled by Germany SIEMENS PLC with safety logic control and troubleshooting functions, protect the machine from broken, diagnosis and solve the problem automatically.
  • #
    Online Trouble Shooting System
    The equipment features a remote control system for real-time monitoring of operational status. This system aids in identifying and addressing circuit faults promptly, with most electrical issues resolved without delay.



TPM10000G Technical Parameters
Pallet size: 1100×950mm Vibration force: 2×12.8KW (Italy PHASE Servo Vibration Motors), dynamic and static structure vibration table
Forming area: 1040×900mm
Control system: Germany SIEMENS PLC Feeding car design: Double swing arms driven
Products height:50~200mm Hydraulic system: 30KW SIEMENS hydraulic motor
Use Italian VTOZ valves and American Albert hydraulic pump
Products strength: 7.5~60 Mpa
Cycle time: 15~20s Power consumption: 60.35KW
Machine weight:
16.5Ton (With face hopper)
Vibration force: 100~120KN
Vibration frequency: 50~60Hz



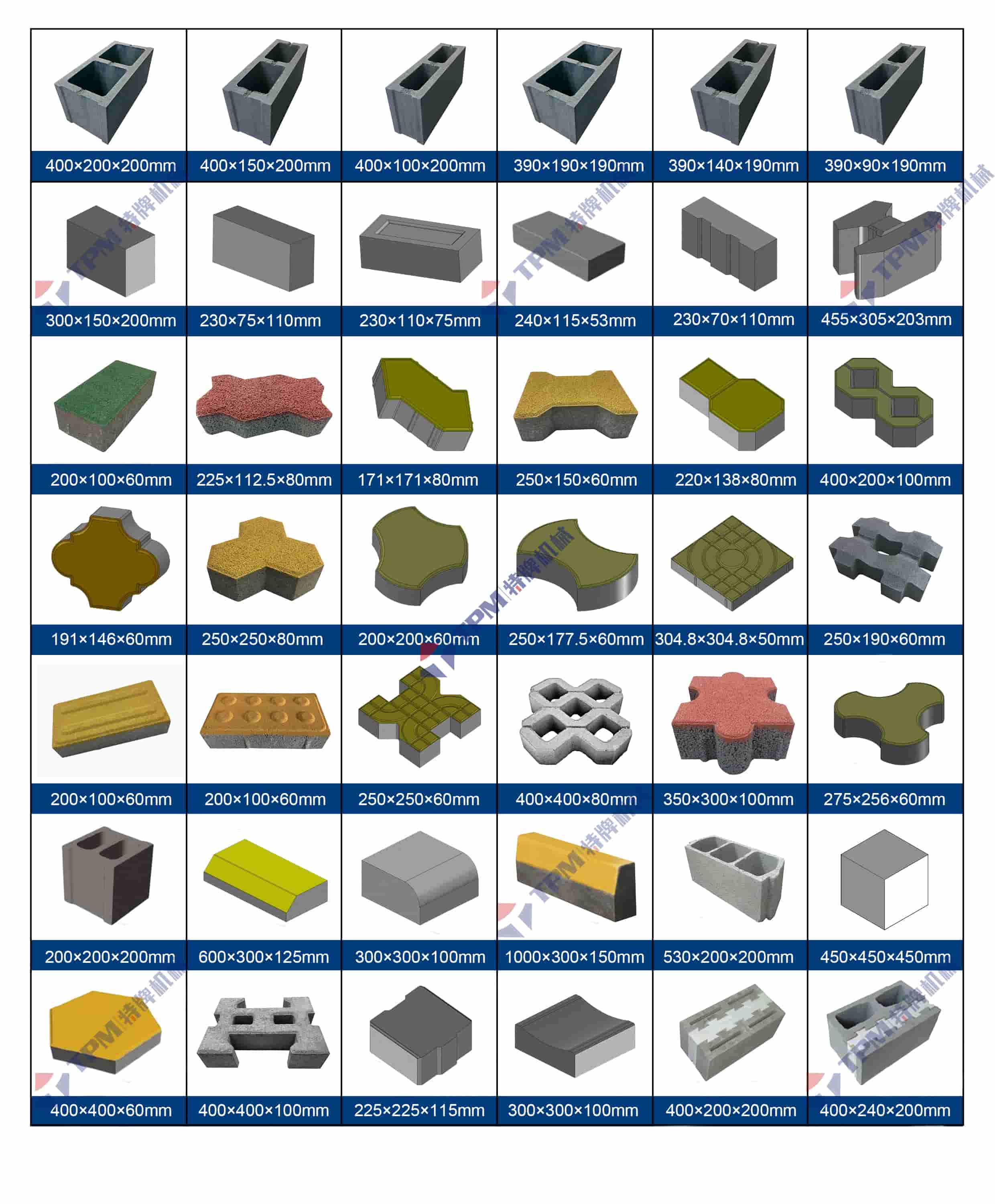

TPM10000G Production Capacity in One Shift (8 hours):
Size Photos Quantity Per Cycle Maximum output in 8 hours
400×200×200mm hollow block 10 pcs 15,000 pcs
220×72×105mm Solid Brick 44 pcs 79,200 pcs
230×110×75mm Solid Brick 28 pcs 50,400 pcs
200×100×60mm holland paver 36 pcs 54,000 pcs
(1,080 sq. mtrs)
225×112.5×80mm Zigzag paver 24 pcs 36,000 pcs
(911 sq. mtrs)

Remarks: The above production is approximate indications and depends on machine settings, mix design, type of aggregates, operator’s experience, numbers of pallets (need to prepare enough pallets), etc
