European Design Concrete Paver Block Machine

European Standard Concrete Paver Block Machine With Servo Vibration

European Standard Concrete Paver Block Machine With Servo Vibration

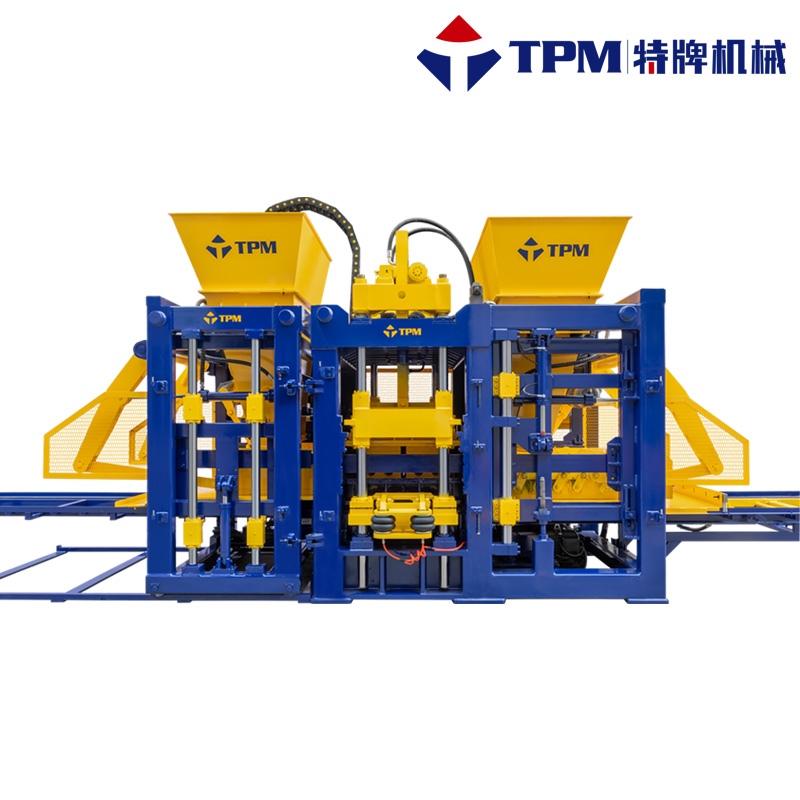

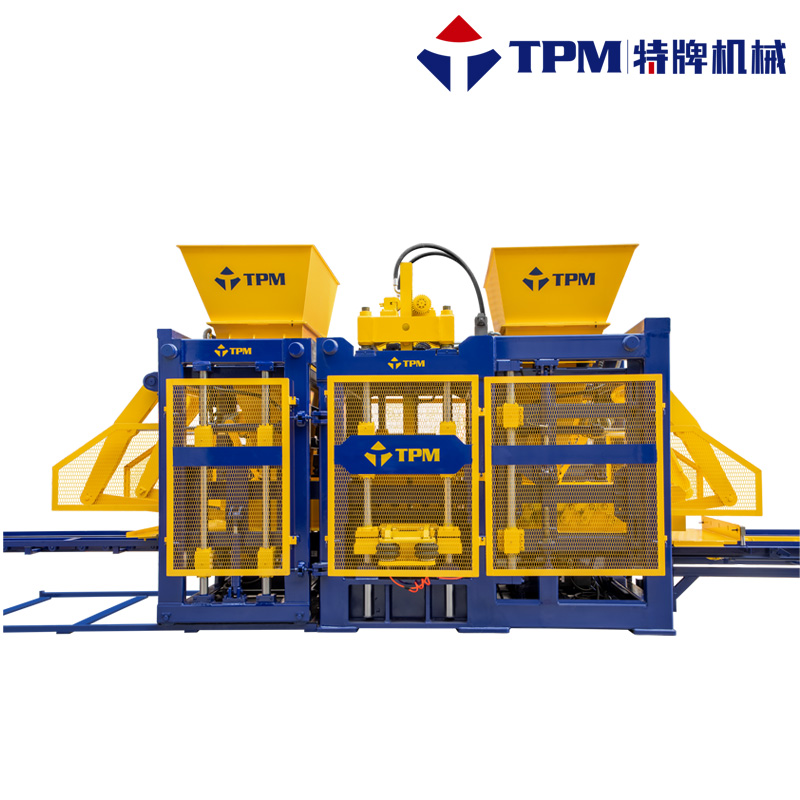

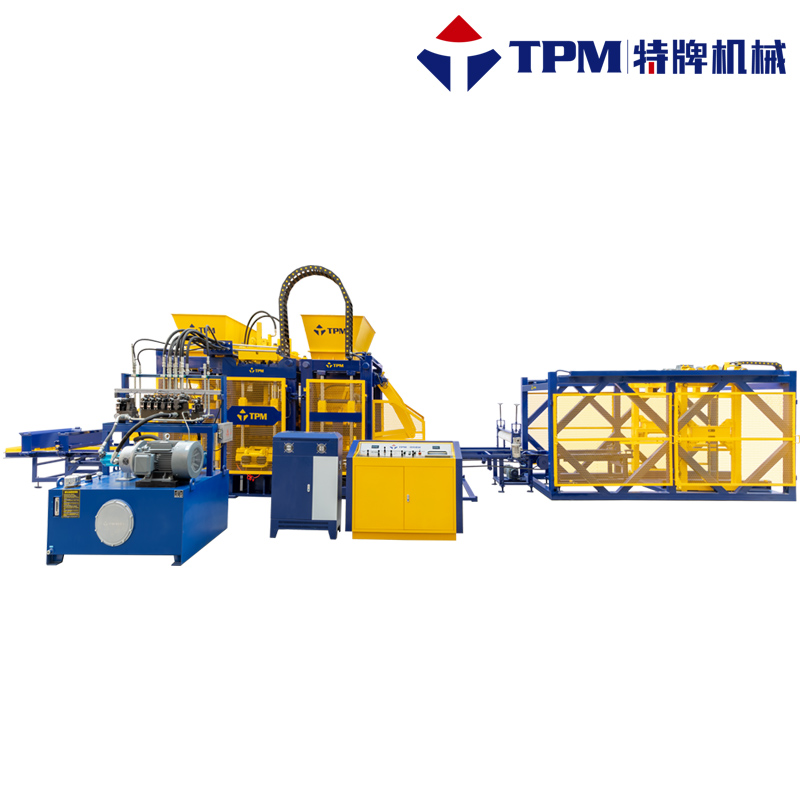

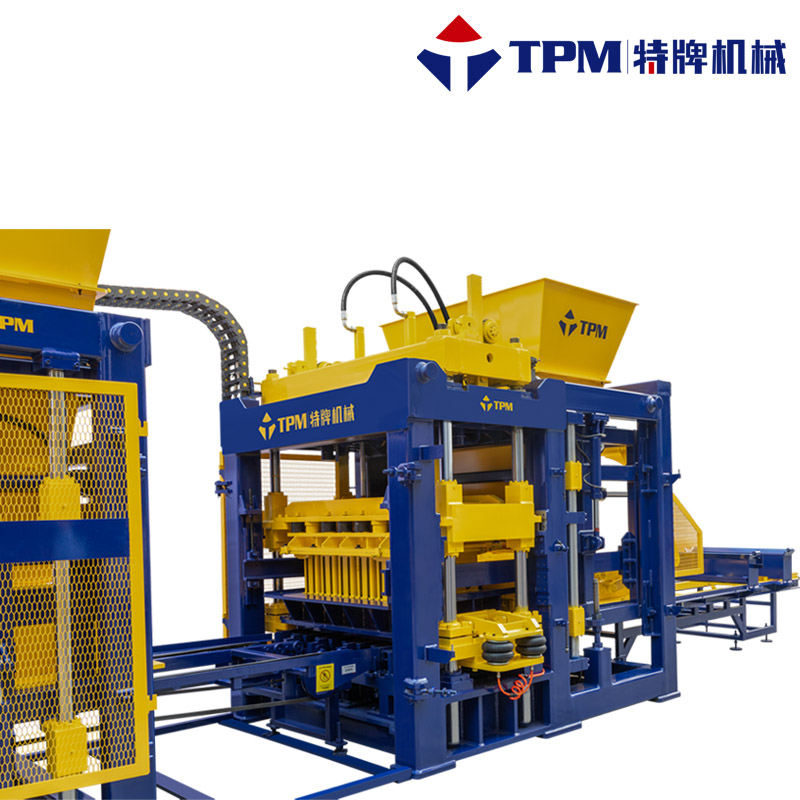

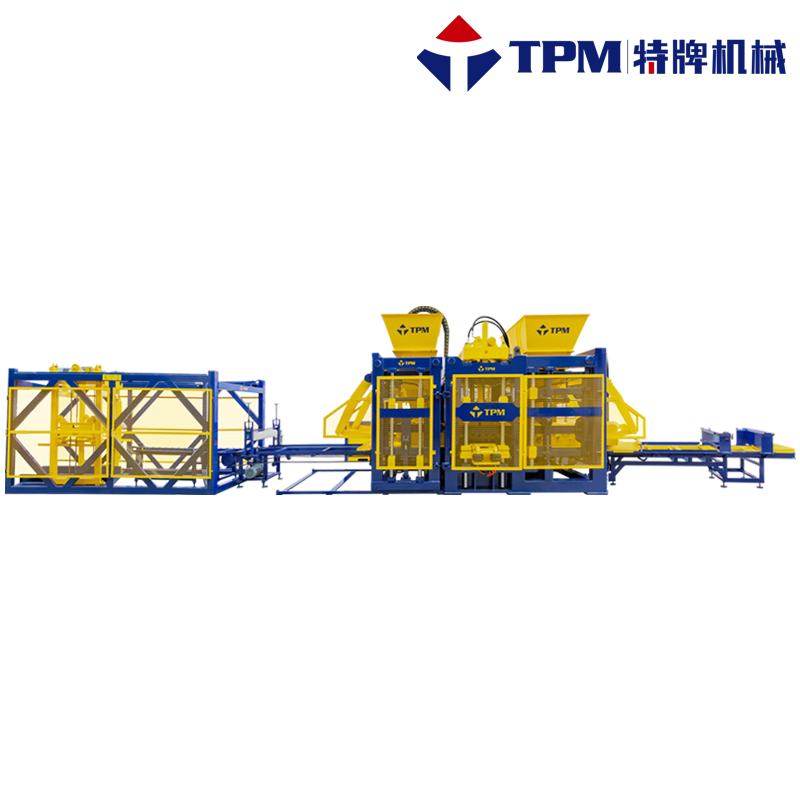

TPM12000G Automatic Paver Block Making Machine has very high performance and enjoys European Standards for high-end market for concrete paving block production. Due to its excellent servo vibration & high-efficient hydraulic system together with feeding car system, the production has become very efficient for high quality and high compactness concrete products.

  • Pallet size: :

    1400×950mm
  • Forming area: :

    1340×900mm
  • Vibration force: :

    120~135KN
  • Production height: :

    50~200mm
  • Control system: :

    Germany SIEMENS PLC Control
  • Power consumption: :

    85.35KW
  • Machine weight: :

    18.5 Ton(With face hopper)

     Reference video of TPM12000G automatic paving block machine:





    High Pressure TPM12000G Automatic Paver Block Machine Technical Features:

  • #

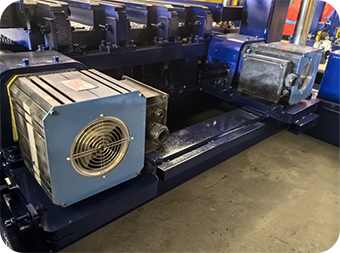

    Strong servo vibration
    Less noise compared to traditonal electric vibration motors. The servo-drive control unit can ensure two servo motors are in the synchronized state, guarantee the vertical output of compaction force. The start-up and end-up of servo vibration is approx. 1 seconds faster, help shorten cycle time, greatly improve production capacity. It also effectively reduce energy consumption by 15% & braking effect is better.
  • #

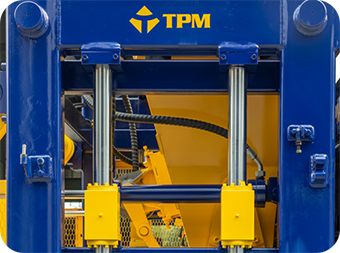

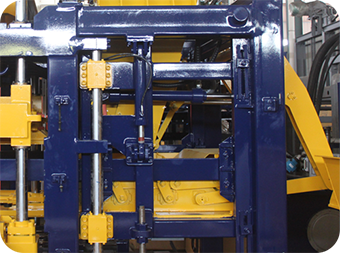

    Heavy-duty structure, robust frame
    The machine features a robust structure with main columns made of 200×200×10mm thick square tubes and four Φ80mm solid guiding columns, ensuring stability and durability. The specially designed synchronous system enhances precision and stability in machine movements.
  • #

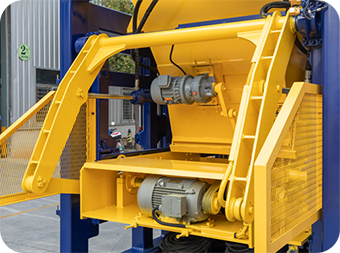

    Efficient Material Feeding Car
    The feeding car is designed with double swing arms, wear-resistant feeding rails, and a wear-resistant bottom plate to ensure fast and even mold filling. The rakers are controlled by a SIEMENS motor via frequency inverter, allowing for adjustable filling speeds based on the type of block being produced.
  • #

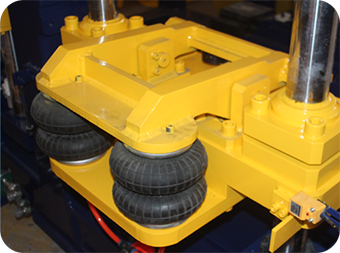

    Air bag system
    Save mold change time(Just need 30~40 minutes), help improve mold lifetime with less noise during brick production.
  • #

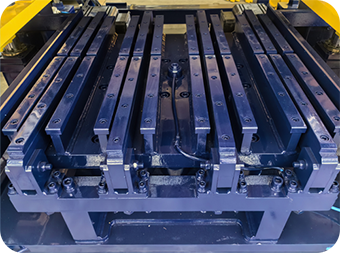

    Static & dynamic vibration table
    Can control vibration amplitube, ensure higher energy transfer efficiency.
  • #

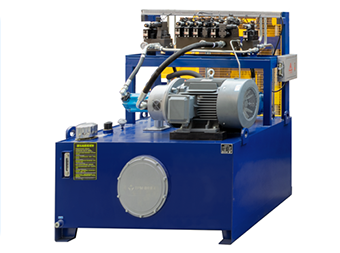

    High efficient hydraulic system
    Adopt 37.5KW SIEMENS hydraulic motor, Italian VTOZ valves and American Albert Hydraulic Pumps to efficiently control the hydraulic oil flow and pressure, thus machine speed and movement is very powerful and accurate.



  • #
    Base hopper discharge
    Materials hopper discharging controlled by electric motor & GUOMAO reducer, the movements are soft with low breakdown rate
  • #

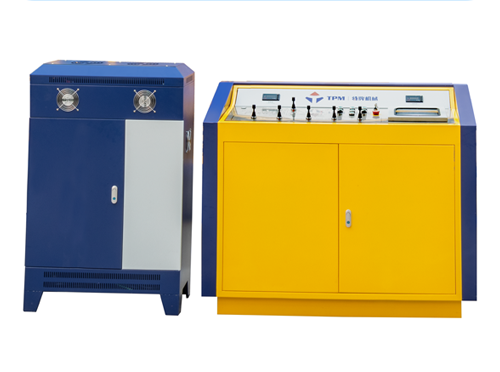

    Servo drive control system
    The vibration system is controlled by GERMANY SIEMENS PLC with safety logic control, protect the machine from broken, diagnosis and solve the problem automatically.
  • #

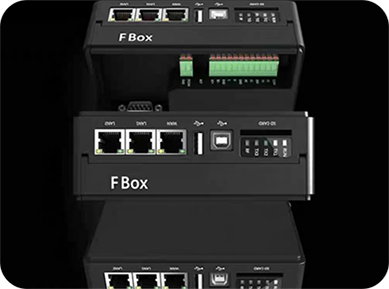

    Online Troubleshooting System
    The equipment features a remote control system for real-time monitoring, facilitating prompt identification and resolution of circuit and electrical faults, minimizing downtime.





Cement Block Machine TPM12000G Technical Parameters
Pallet size: 1400×950mm Vibration force: 2×16.5KW (Italian PHASE Servo Vibration Motors), dynamic and static structure vibration table
Forming Area: 1340×900mm
Control system: Germany SIEMENS PLC Feeding car design: Double swing arms driven
Products height: 50~200mm Hydraulic system: 37.5KW (SIEMENS Hydraulic Motor)
Products strength: 7.5~60Mpa Use Italian VTOZ valves and American Albert hydraulic pump
Cycle time: 12~20s Power consumption: 85.35KW
Machine weigth:
18.5 Ton (With face hopper)
Vibration fore: 120~135KN
Vibration frequency: 50~60Hz



TPM12000G Machine Concrete Block and Paver Production Capacity In One Shift:
Size Photos Quantity Per Pallet Maximum Output In 8 Hours
400×200×200mm Hollow Block 12 pcs 18,000 pcs
230×70×110mm Solid Brick 55 pcs 99,000 pcs
230×110×75mm Solid Brick 35 pcs 63,000 pcs
200×100×60mm Holland Pavers 48 pcs 72,000 pcs
(1,440 sq. mtrs)
225×112.5×80mm Zigzag Pavers 35 pcs 52,500 pcs
(1,330 sq. mtrs)

Remarks: The above production is approximate indications and depends on machine settings, mix design, type of aggregates, operator’s experience, numbers of pallets (need to prepare enough pallets), etc

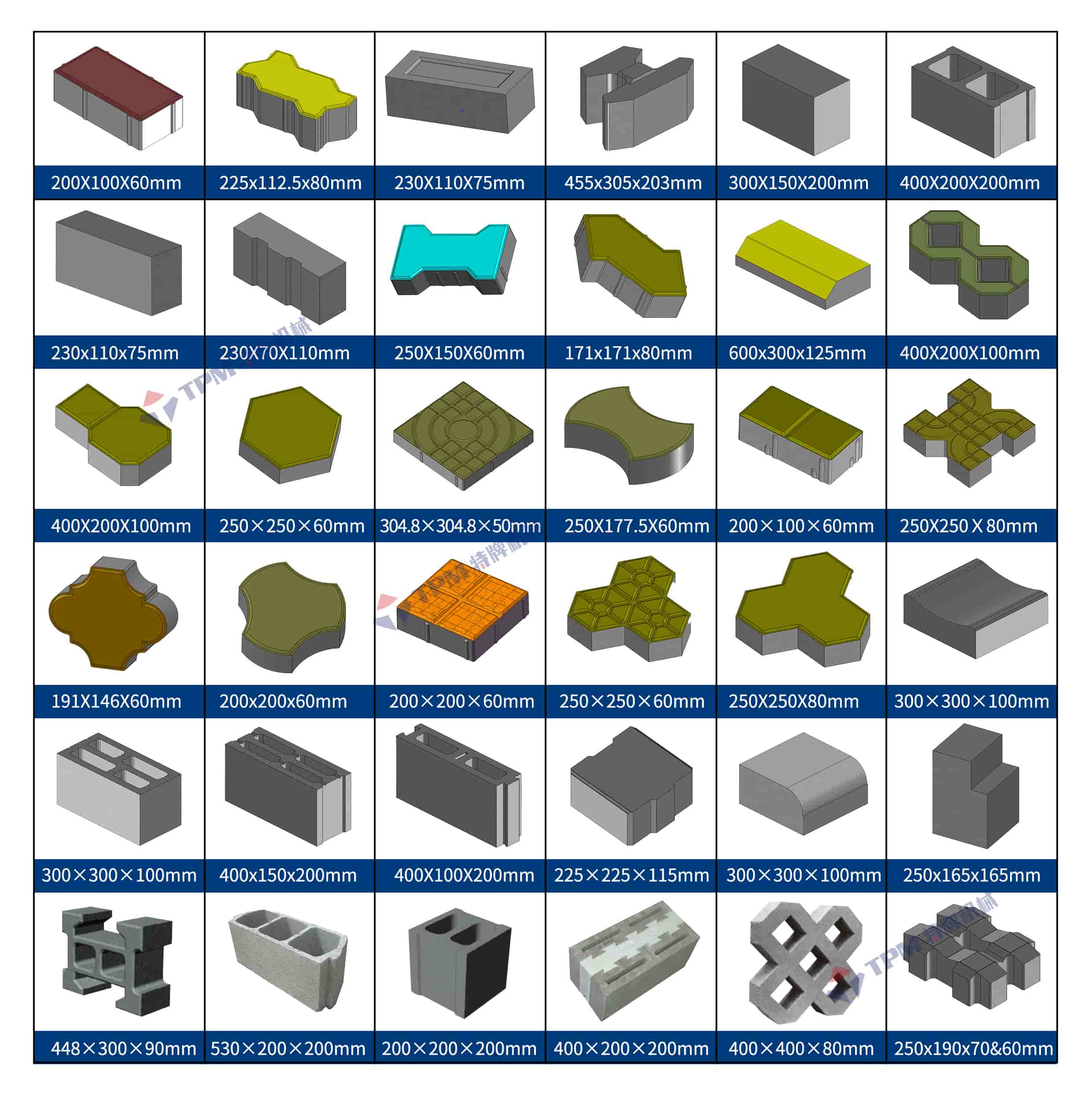

End products made by TPM12000G paving block machine, hollow bricks, paving blocks, paving stones, interlocking pavers etc.

Paving blocks
