High Level TPM15000G Advanced Servo Vibration Block Machine

Home

European Design Concrete Block Machine

High Level TPM15000G Advanced Servo Vibration Block Machine

High Level TPM15000G Advanced Servo Vibration Block Machine

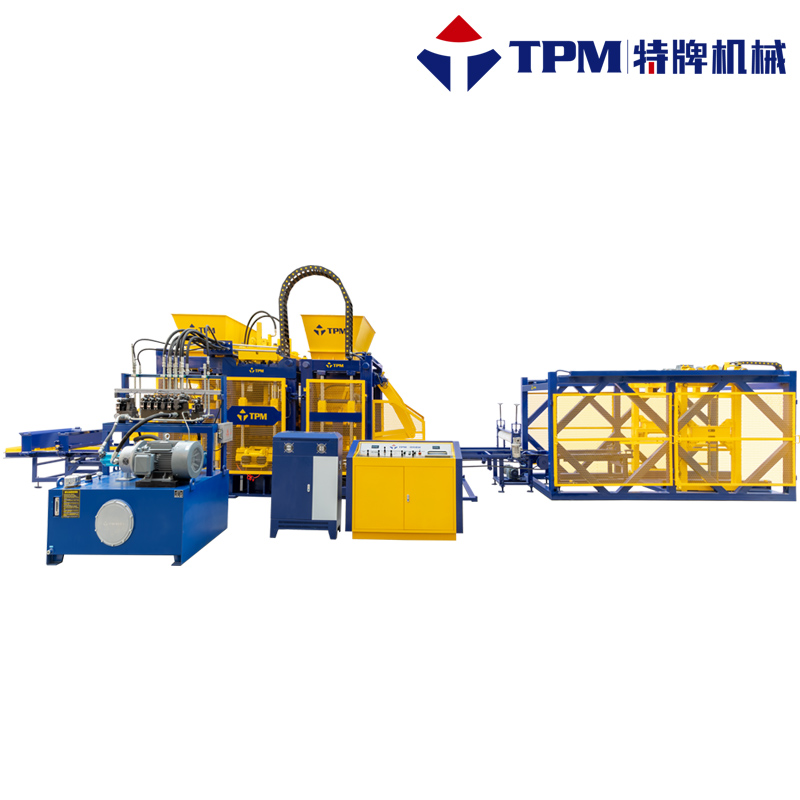

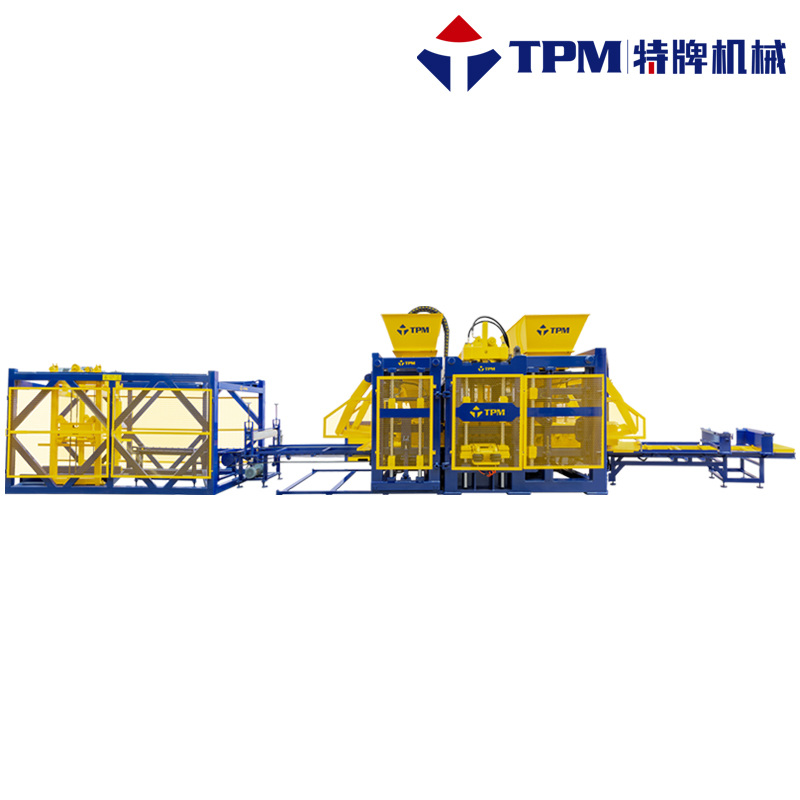

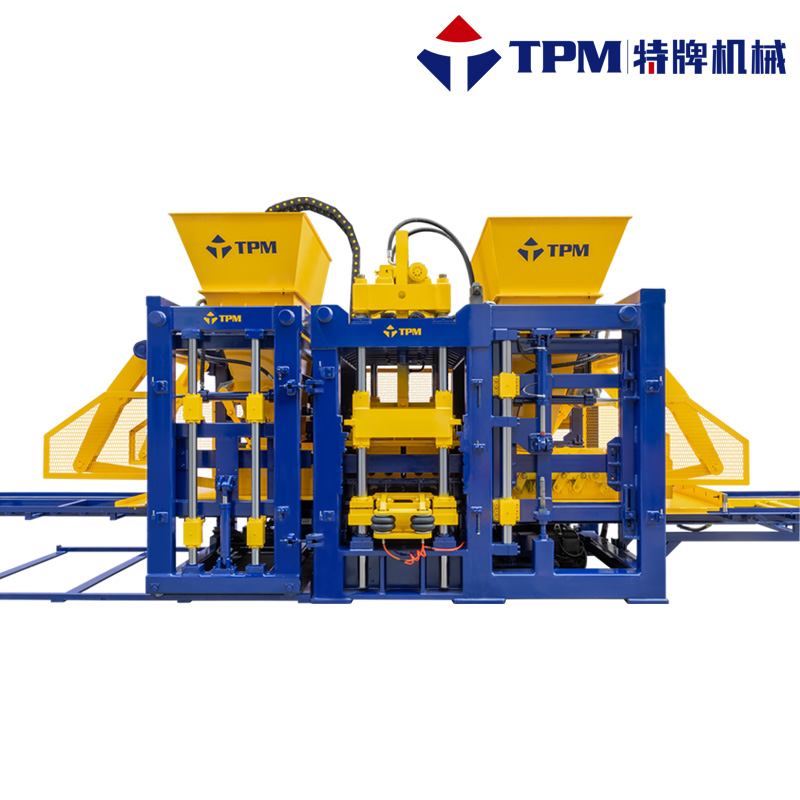

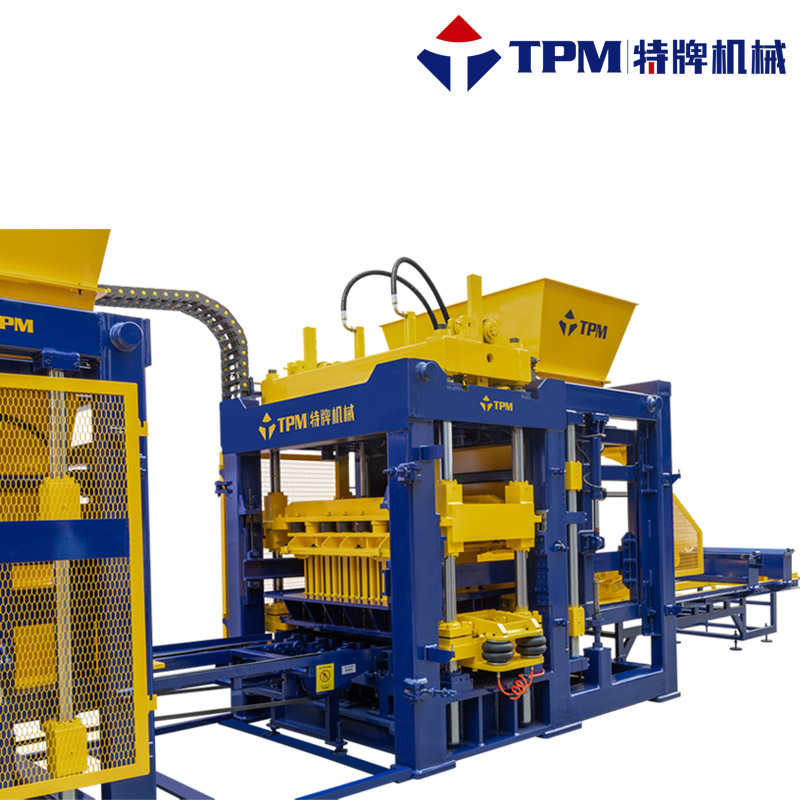

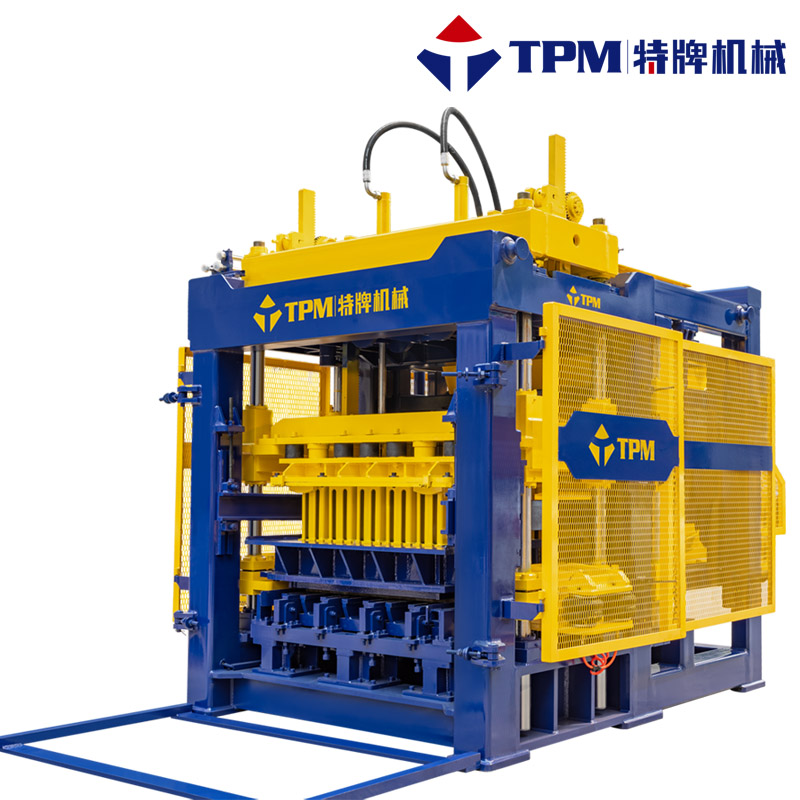

TPM15000G Concrete Cement Brick Block machine is designed to efficiently produce high-quality concrete cement bricks and blocks. With its state-of-the-art technology and robust construction, it offers unmatched performance and reliability.

  • Pallet size: :

    1400×1150mm
  • Forming area: :

    1340×110mm
  • Vibration force: :

    135~160KN
  • Production height: :

    50~500mm
  • Control system: :

    Germany SIEMENS PLC Control
  • Power consumption: :

    108.65KW
  • Machine weight: :

    22.5 Ton(With face hopper)

High Quality Automatic TPM15000G Cement Block Machine Technical Features:

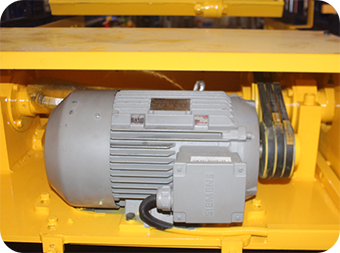

1) Strong servo vibration:  Less noise compared to traditonal electric vibration motors. The servo-drive control unit can ensure two servo motors are in the synchronized state, guarantee the vertical output of compaction force. The start-up and end-up of servo vibration is approx. 1 seconds faster, help shorten cycle time, greatly improve production capacity. It also effectively reduce energy consumption by 15% & braking effect is better;

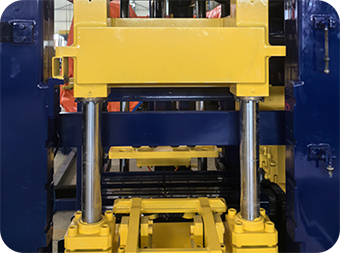

2) Heavy-Duty Frame: The machine features a robust structure with main columns made of 200×200×10mm thick square tubes and four Φ80mm solid guiding columns, ensuring stability and durability. The specially designed synchronous system enhances precision and stability in machine movements.



3) Efficient Material Feeding Car: The feeding car is designed with double swing arms, wear-resistant feeding rails, and a wear-resistant bottom plate to ensure fast and even mold filling. The rakers are controlled by a SIEMENS motor via frequency inverter, allowing for adjustable filling speeds based on the type of block being produced.

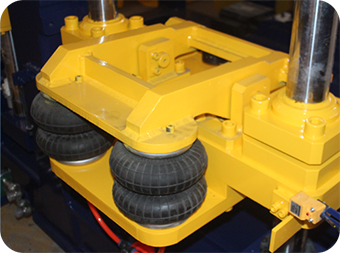

4) Air bag system: Save mold change time(Just need 30~40 minutes), help improve mold lifetime with less noise during brick production;

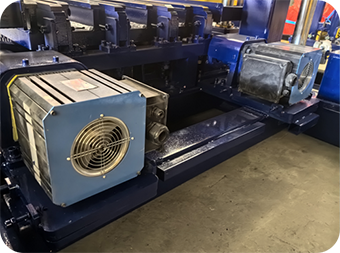

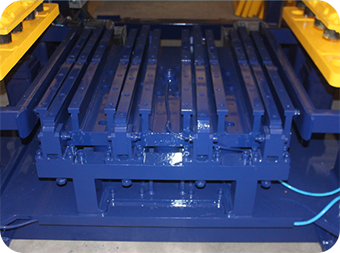

5) Static & dynamic vibration table: Can control vibration amplitube, ensure higher energy transfer efficiency;

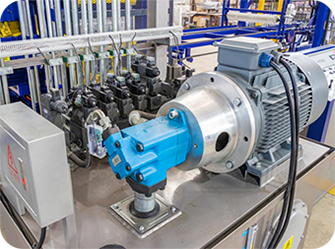

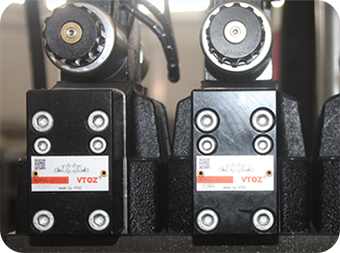

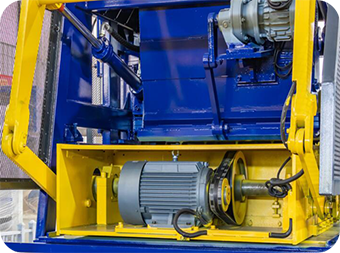

6) High efficient hydraulic system: Adopt 37.5KW SIEMENS hydraulic motor, Italian VTOZ valves and American Albert Hydraulic Pumps to efficiently control the hydraulic oil flow and pressure, thus machine speed and movement is very powerful and accurate;

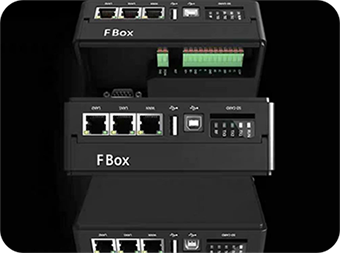

7) Online Troubleshooting System: The equipment features a remote control system for real-time monitoring, facilitating prompt identification and resolution of circuit and electrical faults, minimizing downtime.



TPM15000G Technical Parameters
Pallet size: 1400×1150mm Vibration force: 4×11KW (Italian PHASE Servo Vibration Motors), dynamic and static structure vibration table
Forming Area: 1340×1100mm
Control system: Germany SIEMENS PLC Feeding car design: Double swing arms driven
Products height: 50~500mm Hydraulic system: 45KW (SIEMENS Hydraulic Motor)
Products strength: 7.5~60Mpa Use Italian VTOZ valves and American Albert hydraulic pump
Cycle time: 12~20s Power consumption: 108.65KW
Machine weigth:
22.5 Ton (With face hopper)
Vibration fore: 135~160KN
Vibration frequency: 50~60Hz



TPM15000G Maximum Production Capacity in 8 hours:
400×200×200mm Hollow Block 15 pieces/cycle 22,500 pcs/8 hrs
400×150×200mm Hollow Block 18 pieces/cycle 27,000 pcs/8 hrs
200×100×60mm Rectangular Paver 54 pieces/cycle 81,000 pcs/8 hrs
200×160×60mm I Shape Pavers 36 pieces/cycle 54,000 pcs/8 hrs

Remarks: The above production is approximate indications and depends on machine settings, mix design, type of aggregates, operator’s experience, numbers of pallets (need to prepare enough pallets), etc
